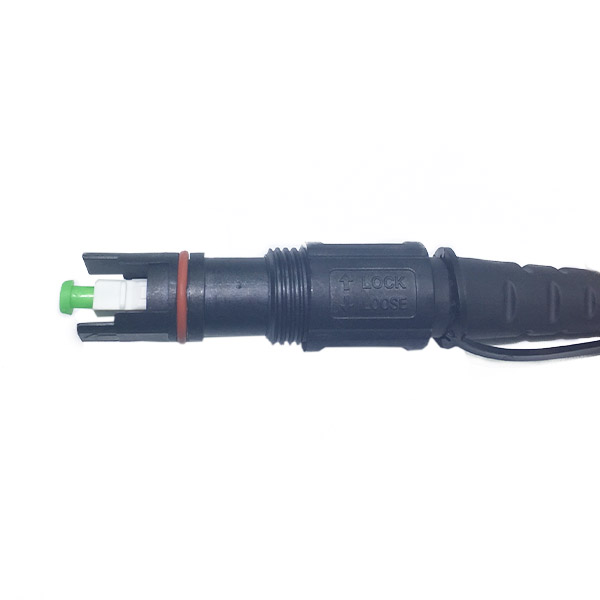

Harsh environment cable assemblies IP SC simplex with dust cap to
SC connector
SuperTap® IP68 SC cabling connector, researched and developed
individually by ORC has abtained the patent from the authority. The
waterproof series solutions provide you with the robust protection
for fiber optic interconnection, which enables the applications in
moisture, liquid and dust environment, for example, fiber cabling
deployment in FTTA, industrial network, base stations, railway
systems.
Features
◆ Light weight, waterproof, dustproof, moisture proof, Metal hard
housing
◆ Provides moisture and dust protection for use in harsh industrial
environment
◆ IP68 protection, salt-mist proof, humidity proof, dust proof
◆ Drastically reduces field splicing with a predetermined loss at
each waterproof tether access point
◆ Reduce installation time by as much as 50% per network access point
◆ 100% optically tested to ensure quality performance assemblies
◆ Available in single mode and multimode styles to work with any
common fiber type
◆ Broad temperature range (-40 to +85℃) is ideal for indoor or
outdoor applications
◆ Mark on dust cap can help people who cannot distinguish between
colors to operate
◆ Easy Operation, reliable and cost-effective installation
Application
◆ For connection between distribution box and RRH
◆ Deployment in Remote Radio Head cell tower applications
◆ FTTH & FTTA
Specification
| Standards | Comply to GR-3120, GR3152, IEC 61753-1, IEC 61754-4 |
| Insertion Loss(SC&LC) | Max. 0.5dB, Mean 0.15dB(8° angled) |
| Insertion Loss(MPO) | Max. 0.6dB, Mean 0.35dB(8° angled) |
| Return Loss(SC&LC) | Min 55dB(8° angled) |
| Return Loss(MPO | Min 55dB(8° angled) |
| Operation Temperature | -40 to 85℃ |
| Storage Temperature | -40 to 85℃ |
| Cable Dimension | 5.0mm, 7.0mm or 4.5*7.0mm flat |
| Dust Cap Max. Pulling Force | 100lb |
| Water Resistance | IP68 |
3. Geometry Parameters
| UPC |
| Item | Pass/Fail |
| Parameters | Min | Max |
| ROC | 7.0mm | 25.00mm |
| Fiber Height | -100.0nm | 50.0nm |
| Apex Offset | 0.00μm | 50.00μm |
| APC |
| Item | Pass/Fail |
| Parameters | Min | Max |
| ROC | 5.0mm | 12.00mm |
| Fiber Height | -100.0nm | 50.0nm |
| Apex Offset | 0.00μm | 50.00μm |
| APC Angle | 7.700deg | 8.300deg |
| Key Error | -0.500deg | 0.500deg |
4. Drawing and Details Picture
Product Advantages
◆ We passed many quality system vertification, like ISO, RoHS; and
passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is
15,000 connectors/day and MT product capacity is 3000
connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested
individually in our production line as well as 100% tested by the
QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable
service to each customer.
ORC QC Process Flow Chat
FAQ
1. Q: Can you offer the test report?
A: Of course, we can show you the test report by ourselves as well
as the third party test report. Please contact our sales for it.
2. Q: What cable types are available for the connector?
A: The cables can be round or flat shape, armored or non-armored.
The diameter range for round cable is from 7.0mm to 14.0mm, and for
flat cable is 4.5mm*8mm.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the
regular products. For the MT products, our capacity is 3000
connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical
drawings.
