    24F SM Drawer Type Data Center Enclosures For LC Uniboot HD Interface

    Ask Lasest Price
    Brand Name : OEM
    Model Number : 24F MPO/UPC-M-LC/UPC-G
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 3000 connectors/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    24F SM Drawer Type Data Center Enclosures For LC Uniboot HD Interface

    24F SM MPO-LC cassette for data center rack drawer type designed for LC Uniboot HD interface
    Good performance, space saving MPO fiber optic cassettes, are ideal products for connecting multi-fiber MPO trunk cables and splitting them out to various patch cables. 24F MPO-LC cassette is designed with 2 pcs of MPO adapter, and the LC adapter is for the connection of the high density LC uniboot connetor with push-pull tab. This kind of compact design saves much space.
    Features
    12 Fiber Ferrule MPO/MTP®
    Female and Male MPO/MTP® option of Connectors
    Plug and Play, Small Form Factor
    Cassette comes fully populated internally with pre-terminated MPO breakout/harness cables inside
    Each cassette is 100% Pre-Tested in factory
    ◆ Support OEM&ODM
    Application

    ◆ Data Centre Infrastructure
    ◆ Fiber Optic Network Cabling
    ◆ FTTx in passive optical network
    ◆ IDF/MDF with space constraints
    Specification

    1. Operating & Storage Temperature


    ParametersMinMaxUnit
    1Operating Temperature-1070°C
    2Storage Temperature-4085°C

    2. Optical Performance


    TypeWavelengthI.L MaxR.L Min
    Elite MTP-LC(MM)850nm/1300nm0.35dB30dB
    Elite MTP-LC(SM)1310nm/1550nm0.35dB50dB
    MPO-LC(MM)850nm/1300nm0.6dB20dB
    MPO-LC(SM)1310nm/1550nm0.75dB50dB

    3. Geometry Parameters


    MT
    MeasurementPass/Fail Limits
    ParametersMinMax
    Radius of CurvatureLong Axel2000mm

    Short Axel50mm

    AngleLong Axel-0.2°0.2°
    Short AxelAPC7.8°8.2°
    PC-0.2°0.2°
    Fiber Height1000nm3000nm
    Different Fiber HeightN/A500nm
    Adjacent Fiber HeightN/A300nm
    Ferrule Length7.9mmN/A

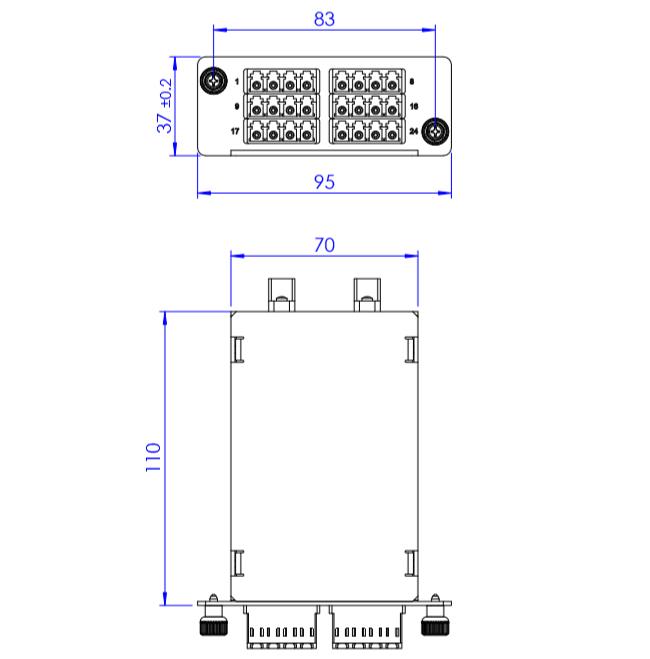

    4. Details Picture



    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    ORC QC Process Flow Chat
    ORC Production Show
    FAQ
    1. Q: How can you test a single mode jumper?
    A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
    2. Q: Are these cables compatible with a variety of modules?
    A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
    3. Q: What's your average lead time?
    A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
    4. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
