    C Band Mini WDM MUX DEMUX 48 / 40 Channel 100GHz Athermal AWG Module Gaussian Style

    DWDM C Band mini 48 / 40 channel dwdm 100GHz Athermal AWG Module Gaussian style


    Athermal AWG is an integrated PLC component that multiplexes or demultiplexes 40, 44, 48 channels onto a single fiber for Dense Wavelength Division Multiplexing(DWDM) applications. ORC provides AWG module for the C-Band with standard channel spacings of 100GHz.


    Feature


    - Multi-channal number

    - High channel isolation

    - Low insertion loss

    - Mux and Demux functionality

    - Quality under Telcordia 1209/1221 and RoHS compliant


    Application


    - DWDM transmission

    - Metro Area Networks

    - Long Haul Networks

    - PON networks

    - Building blocks for ROADM and VMUX


    Specification


    No.ParameterUnitSpecificationNote
    1Pass Band ProfileGaussian
    2Nominal Channel SpacingGHz100
    3Output Number of Channels40/48
    4Operating BandC Band
    5Clear PassbandGHz±12.5
    6Wavelength Accuracypm±40
    71dB Bandwidthnm≥0.4
    83dB Bandwidthnm≥0.6
    920dB Bandwidthnm≤1.2
    10Optical Insertion LossdB≤5.0
    11Insertion Loss UniformitydB≤1.0
    12RippledB≤0.5
    13Polarization Dependent LossdB≤0.4
    14Adjacent Channel IsolationdB≥25
    15Non-adjacent Channel IsolationdB≥32
    16Total CrosstalkdB≥22
    17Polarization Mode Dispersion(PMD)ps≤0.5
    18Chromatic Dispersionps/nm±20
    19Optical Return LossdB≥40
    20Package Sizemm120x70x10
    21Fiber TypeSMF28e
    22Input Common Fiber Lengthmm1000±50900μm Loose Tube
    23Ribbon Fiber Lengthmm500±50
    24Fan-out Fiber Lengthmm500±50900μm Loose Tube
    25Connector TypeLC/UPC
    Note: all the data above include connectors

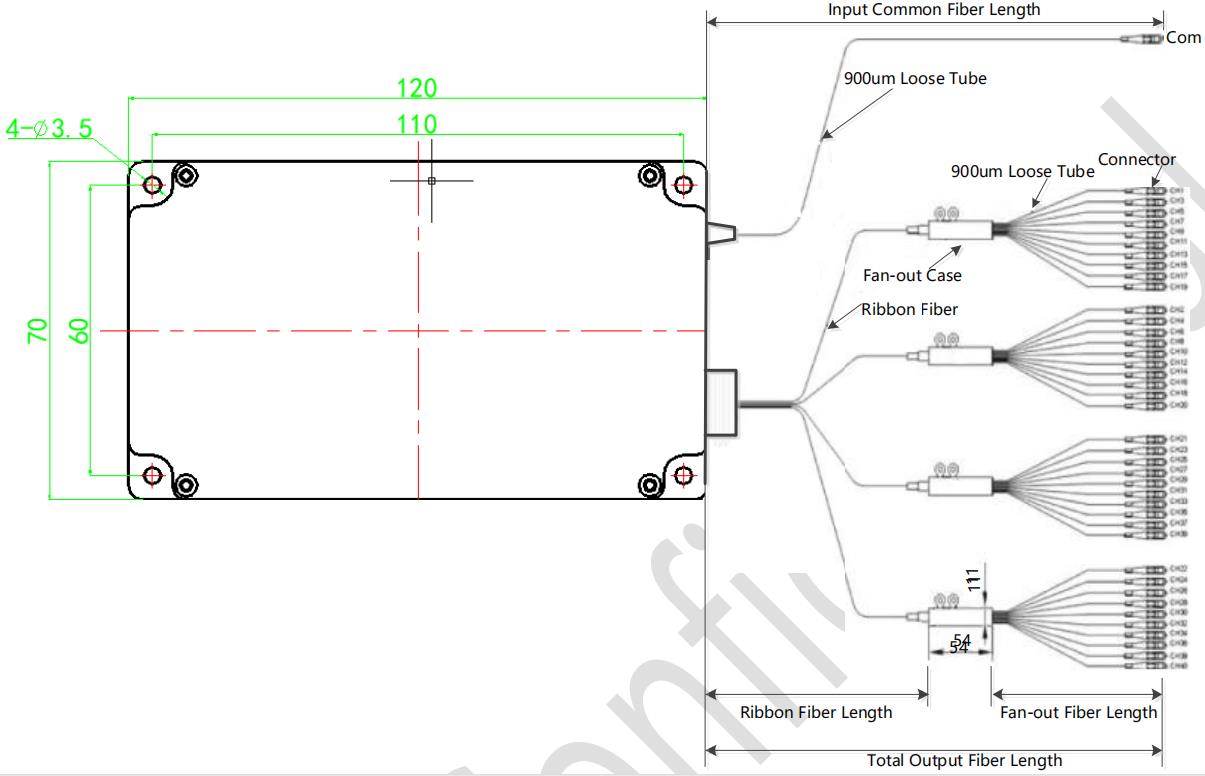

    Fiber Length Definition
