    4CH WDM MUX DEMUX 1271 / 1291 / 1311 / 1331nm Bandwidth For 100G / 200G Fiber Optic Transceiver

    Ask Lasest Price
    Brand Name : ORC/OEM
    Model Number : ORC-CD4
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 19000pcs/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    4CH WDM MUX DEMUX 1271 / 1291 / 1311 / 1331nm Bandwidth For 100G / 200G Fiber Optic Transceiver

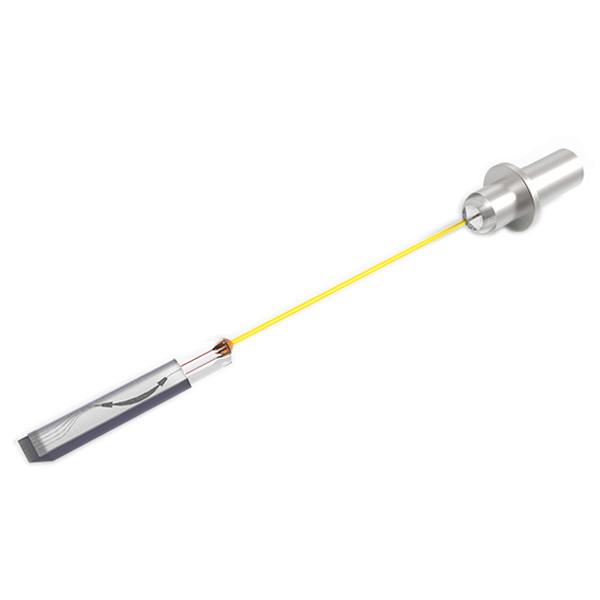

    CWDM AWG device 4 channel DEMUX 1271nm / 1291nm / 1311nm / 1331nm for 100G / 200G fiber optic transceiver


    Fabricated with array waveguide grating (AWG) chips, CWDM4 MUX/DEMUX can be applied to 40G, 100, 400G and beyond application. Its compact size helps produce the smallest form factor TOSA/ROSA devices, and increase the transmission capacity of optical networks.


    Feature


    - Complete production capacity from V-groove to end product

    - Low Insertion loss

    - Good Uniformity

    - Automatic production, good consistency


    Application


    - 4x10 Gbps CWDM TOSA&ROSA for QSFP+

    - 4X25 Gbps LAN-WDM TOSA&ROSA for QSFP+

    - Data center

    - 5G application


    Specification


    Channel Optical Performance
    ParameterRegionMeasure form=>toUnitSpec
    1Channel Number4
    2Spectral Regionnm1300 Region
    3Channel Spacingnm(GHz)20(3543)
    4Center Wavelengthnm(THz)

    1271(235.87),

    1291(232.22),

    1311(228.67),

    1331(225.24).

    5Center Wavelength Accuracynm±1
    6Bandwidth1-dB Bandwidth(compared with center wavelength)Minnm12
    3-dB Bandwidth(compared with center wavelength)15
    7Insertion LossPassband(ITU +/-2nm)Channels=>COMMaxdB2.5
    8UniformityIL max - IL min (all channels)MaxdB1.0
    9Ripple

    Passband

    (ITU±5nm)

    Channels=>COMMaxdB1.0
    10Isolation

    adjacent channel

    (ITU±6.5nm)

    COM=>ChannelsMindB20

    non-adjacent channel

    (ITU±6.5nm)

    COM=>Channels25
    11Polarization Dependant Loss(ITU +/-1nm)MaxdB0.5
    12Center Wavelength ShiftMaxnm/℃0.011
    13Polarization Mode DispersionMaxps0.15
    14Power HandlingMaxnW300
    15Operating Temp-5 to 80
    16Storage Temp-40 to 85

    AWG Dimension
