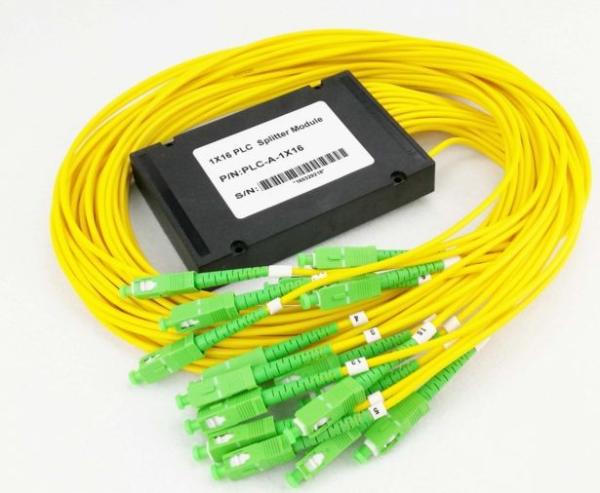

ABS Box 1x16 PLC Splitter SC APC Singlemode LSZH Fiber Optic PLC Splitter

PLC Splitter 1X16 SM 100*80*10mm ABS box 2.0mm LSZH with SC/APC Connector ​

Planar lightwave circuit (PLC) splitter is features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management. ORC provides a whole series of 1xN and 2xN splitters that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements


Product Information

Description: 1×16PLC Splitter Module, input and output fiber with 2.0mm loose tube, 1.0m pigtail with LC/APC connector.


Performance Specifications

ParametersSpecificationsUnitsNotes
Channel Number1×16Comply with RoHS requirement
Operation Wavelength1260 ~ 1650nm
Insertion Loss 1≤13.8dB
Polarization Dependent Loss≤0.3dB
Uniformity≤1.2dB
Return Loss≥50dB
Directivity≥55dB
Fiber TypeG657A
Pigtail Type2.0mm loose tube
Length≥1.0m
Connector TypeLC/APC
MarkInput:Blue
Output:Yellow
Package Dimension120×80×18mm
Operating Temperature-40~ +85
Storage Temperature-40 ~ +85

Notes: 1. Insertion Loss tested without connector.
