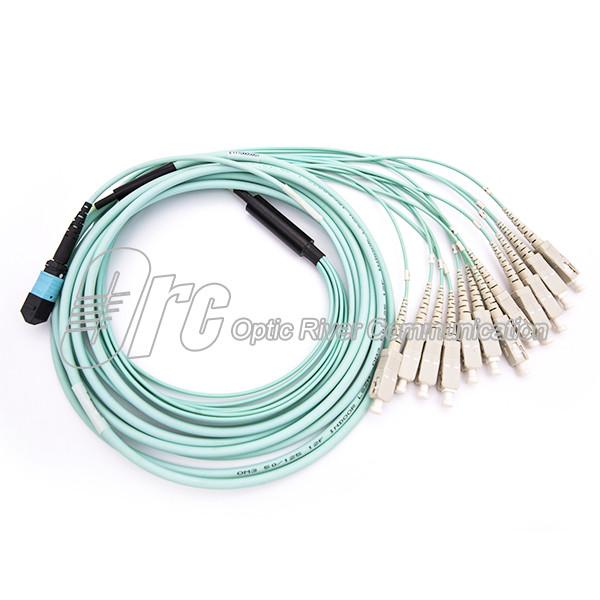

MPO To SC 12 Cores 850nm OFNR Optical Fiber Patch Cord

    Buy cheap MPO To SC 12 Cores 850nm OFNR Optical Fiber Patch Cord from wholesalers

    Buy cheap MPO To SC 12 Cores 850nm OFNR Optical Fiber Patch Cord from wholesalers
    • Buy cheap MPO To SC 12 Cores 850nm OFNR Optical Fiber Patch Cord from wholesalers

    MPO To SC 12 Cores 850nm OFNR Optical Fiber Patch Cord

    Ask Lasest Price
    Brand Name : OEM
    Model Number : MPO/PC-SC/UPC-12F-3.0-2M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000,000 connectors/month
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    MPO To SC 12 Cores 850nm OFNR Optical Fiber Patch Cord

    12 cores Harness Cable Optical Fiber Patch Cord, MPO to SC Fiber Optic Patch Cord

    The MPO cabling system, due to its modularity, offers installers and operators reduced time & effort for installations, modification and maintenance of a structured communication cabling for demands of data centers. It can be either used for parallel optics applications such as Infiniband with data rates up to 120 Gb/s and for the upcoming 40 Gb/s and 100 Gb/s Ethernet protocols via Multimode OM3, OM4 and OS2 fiber. MPO fanout cable is a multi-fiber optical cable with one end terminated with a male/ female MPO connector and the other end attached with several LC connectors. Actually, there are various types of MPO fanout cables, according to connector type, cable length and cable type.

    Features

    * High Performance in IL & RL

    * 4,8,12 and 24 fiber connector terminations and assemblies

    * Designed for low loss and standard loss SM and MM applications

    * Economical solution for mass-termination of fiber

    * Suitable for MPO/MTP application

    * Ruggedized round cable, oval cable and bare ribbon options available

    * Color coded housings available to differentiate fiber type, polish type and/or connector grade


    Fiber cable performance
    Fiber TypeOS2, OM1, OM2, OM3, OM4 OM5
    Fiber Count12, 24, 48, 72, 96, 144 cores
    Fiber Attenuation dB (OS2)≤0.38 Max ≤0.34Typ(1310nm) ≤0.25 Max ≤0.19Typ(1550nm)
    Fiber Attenuation dB (OM1)≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤1.2Typ(1300nm)
    Fiber Attenuation dB (OM2)≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
    Fiber Attenuation dB (OM3)≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
    Fiber Attenuation dB (OM4)≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
    Min.Bandwidth:Overfilled Launch[Mhz-km]OM1200(850nm) 500(1300nm) OM2500(850nm) 500(1300nm) OM31500(850nm)500(1300nm)OM43500(850nm) 500(1300nm)
    Min.Bandwidth:Laser Effective Modal Bandwidth [Mhz-km]
    OM3 2000(850nm) OM4 4700(850nm)
    Outer diameter12fiber: 3.0 or 5.5mm; 24fiber: 3.0 or 5.5mm
    Outer jacket ColourOS2(Yellow), OM2(Orange), OM3(Aqua), OM4(Purple or Aqua)
    Outer jacket materialLSZH,OFNP,OFNR
    Tensile strength>500N
    Operating Temperature-40 ~ +85°C

    Associated standards

    * Meets IEC Standard 61754-7& JIS C5982

    * Structured cabling per TIA-568-C

    * Parallel Optics
    - Optical Internetworking Forum (OIF) Compliant
    - Infiniband Compliant

    * Infiniband
    - 10G Fiber Channel Compliant
    - 40G and 100G IEEE 802.3
    - QSFP


    Ordering information


    1) Connector type: FC, SC, LC, ST, LSH(E2000), MU, MTRJ
    2) Ferrule End-face: PC, UPC, APC

    3) Gender: male, female
    4) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
    5) Cable Quantity: simplex, duplex or multi-cores
    6) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
    7) Cable Length: 1, 2, 3 meter or customized

    8) Cable type: PVC, LSZH, OFNR, OFNP
