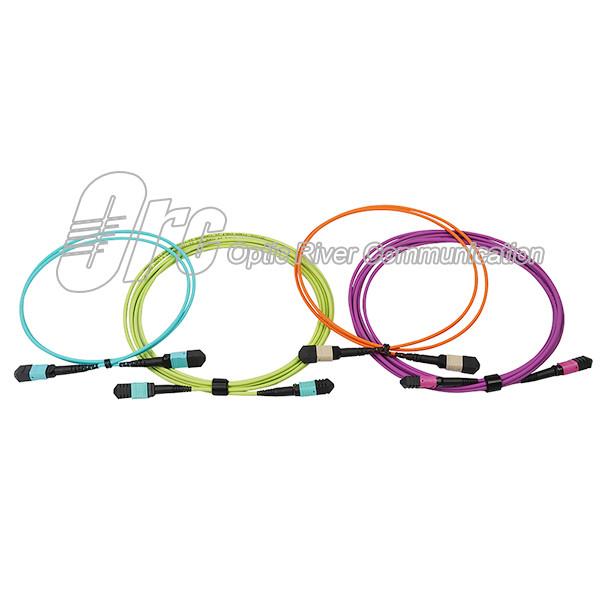

    3.0mm MPO Patch Cable

    3.0mm MPO Patch Cable


    Single Mode Multimode MPO To MPO Trunk Cable 12F 24F 36F 48F Optional


    MPO patchcord utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combination of 4, 8, 12, 24 or 48 fiber ribbon cables. The MPO stander is fully compatible with MTP stander, offers up to 12 times the density of standard connectors, such as LC/SC/FC etc. MPO/MTP patch cord provides sinificant space and cost savings.


    Features

    High speed and high density MPO to MPO patch cable, (MPO FEMALE Connector without PIN)

    Laser-optimized multimode OM2, OM3, OM4 and OM5 fiber

    Low insertion loss and back reflection loss process

    Suitable for MPO cassette application

    Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available


    Application

    High integrated equipment and devices

    Switching between trunk line and distribution line

    High-density cable wiring system

    Connection of trunk lines

    ◆ Emerging 40 and 100Gbps Protocols


    Specification

    1. Operating & Storage Temperature


    Parameters

    Min

    Max

    Unit

    1

    Operating Temperature

    -40

    70

    °C

    2

    Storage Temperature

    -40

    70

    °C


    2. Geometry Parameters

    Measurement

    Pass/Fail Limits

    Parameters

    Min

    Max

    Radius of Curvature

    Long Axel

    2000nm

    Short Axel

    50mm

    Angle

    Long Axel

    -0.2°

    0.2°

    Short Axel

    APC

    7.8°

    8.2°

    PC

    -0.2°

    0.2°

    Fiber Height

    1000nm

    3000nm

    Different Fiber Height

    N/A

    500nm

    Adjacent Fiber Height

    N/A

    300nm

    Ferrule Length

    7.9mm

    N/A


    3. Optical Performance

    Optical Performance

    Item

    Parameters

    MTP/MPO Connector

    SM (1310nm/1550nm)

    MM (850nm)

    Standard

    Low Loss

    Standard

    Low Loss

    Insertion Loss

    Typical

    0.50dB

    0.20dB

    0.50dB

    0.20dB

    Maximum

    0.70dB

    0.35dB

    0.70dB

    0.35dB

    Return Loss

    ≥60dB for APC

    ≥20dB for PC

    ≥40dB for PC

    --

    Male/Female

    Male: with Pins, Female: without Pins


    Standard Package



    Product Advantages


    ◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.

    ◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.

    ◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.

    ◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.


    Choose Your Polarity


    To maintain the proper polarity, there are three connectivity methods—A, B, C—that mirror the cable types. Each polarity method handles the transition from transmit to receive in a different manner.

    • Method A, straight-through, is the most commonly used approach. It is pin 1 to pin 1 and uses Method A (key-up to key-down) MPO connectors.

    • Method B is a crossover method (pin 1 to pin 12) and uses method B (key-up to key-up) MPO connectors.

    • Method C uses flipped pairs (pin 1 to pin 2) and method A (key-up to key-down) MPO connectors. It does not offer a migration pathway to 40-/100-GbE.
