    MPO Single Mode Fiber Optic Cable 12 Cores G652D With Green House

    Ask Lasest Price
    Brand Name : OEM
    Model Number : MPO-12F-F-SM-A-H
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 3000 connectors/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    MPO Single Mode Fiber Optic Cable 12 Cores G652D With Green House

    MPO Single Mode Fiber Optic Cable 12 Cores G652D With Green House

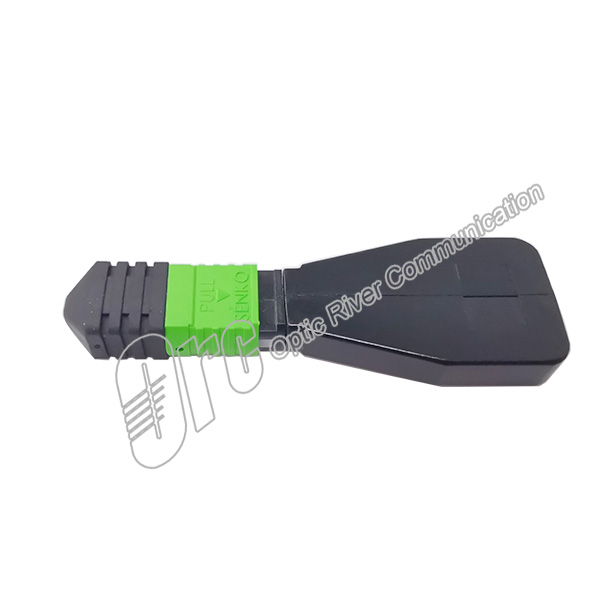

    MPO Loopback Single mode 12 Cores G652D with Green House


    MPO loopback is used to test network system in the signal comes back, through the echo signal, can detect the network link in the various potential abnormalities, the test is widely used, in order to ensure the normal network link provides an effective way of testing.


    Features

    ◆ Male and female structures

    ◆ Options: Elite; Standard

    ◆ End face PC or APC optional

    ◆ Ferrule type: 8F, 12F, 16F, 24F, 32F

    ◆ Optical fiber type: SM (G652D/G657A2) or MM (OM4 BI, OM3BI), specific fiber optional


    Application

    ◆ Optical network equipment self-test

    ◆ Optical fiber integrated wiring

    ◆ System loop testing

    100Gb optical testing

    ◆ Optical fiber loop testing

    ◆ Network diagnosis and testing

    ◆ Storage LAN application


    Specification

    1. Operating & Storage Temperature


    Parameters

    Min

    Max

    Unit

    1

    Operating Temperature

    -40

    70

    °C

    2

    Storage Temperature

    -40

    70

    °C


    2. Optical Performance

    Optical Performance

    Item

    Parameters

    MTP/MPO Connector

    SM (1310nm/1550nm)

    MM (850nm)

    Standard

    Low Loss

    Standard

    Low Loss

    Insertion Loss

    Typical

    0.50dB

    0.20dB

    0.50dB

    0.20dB

    Maximum

    0.70dB

    0.35dB

    0.70dB

    0.35dB

    Return Loss

    ≥60dB for APC

    ≥20dB for PC

    ≥40dB for PC

    --

    Male/Female

    Male: with Pins, Female: without Pins


    3. Geometry Parameters

    Measurement

    Pass/Fail Limits

    Parameters

    Min

    Max

    Radius of Curvature

    Long Axel

    2000nm

    Short Axel

    50mm

    Angle

    Long Axel

    -0.2°

    0.2°

    Short Axel

    APC

    7.8°

    8.2°

    PC

    -0.2°

    0.2°

    Fiber Height

    1000nm

    3000nm

    Different Fiber Height

    N/A

    500nm

    Adjacent Fiber Height

    N/A

    300nm

    Ferrule Length

    7.9mm

    N/A


    4. Details Picture

    Product Advantages

    ◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.

    ◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.

    ◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.

    ◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.


    ORC QC Process Flow Chat



    FAQ

    1. Q: What's your average lead time?

    A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.


    2. Q: What's the difference between MTP and MPO connector?

    A: First of all, MTP connector is fully compliant with all of the MPO connector. MTP, developed and manufactured by the American connectivity specialist US Conec, is a kind of high performance MPO connector with multiple innovative design. So its cost is higher than MPO connector. But there are still some cost-effective choices, such as Senko, Nissin, EZconn, FIEL brand MPO connectors.


    3. Q: Can you produce according to the samples we send you?

    A: Of course, we can produce according to your samples or technical drawings.
