    G657A1 yellow fiber patch cable With High Density Connectors

    Ask Lasest Price
    Brand Name : OEM
    Model Number : SC/APC-LC/UPC-2F-2.0-1M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 15000 connectors/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    G657A1 yellow fiber patch cable With High Density Connectors

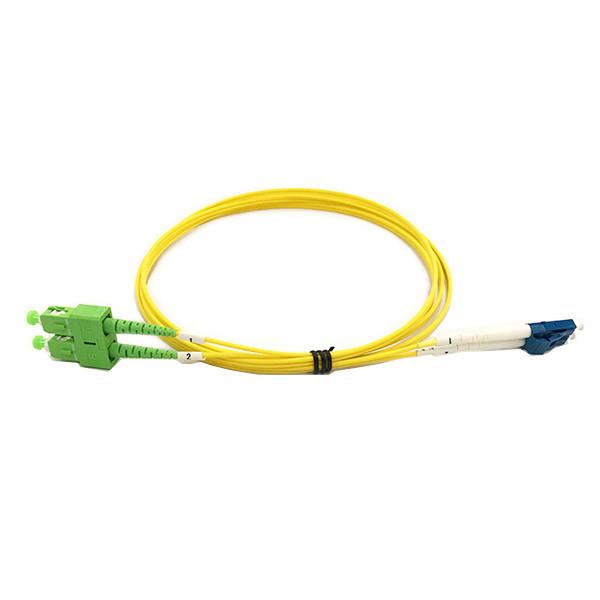

    G657A1 Yellow Fiber Patch Cable With High Density Connectors


    SC / APC - LC / UPC Duplex 2.0mm Single Mode Fiber Optic Patch Leads G657A1 LSZH


    Standard fiber optic patch cables are widely utilized in LAN and WAN, data center, FTTx, telecom network applications etc. Standard fiber optic patch cord can fulfill the requirement from these application, for example quick infrastructure deployment.


    Features

    ◆ LC/SC/ST/FC/MTRJ/E2000/MU connectors are available

    ◆ OM1/OM2/OM3/OM4/OM5 and G652D/G657A1/G657A2 fiber optic cables are available

    ◆ Factory terminated and strict testing on insertion loss, return loss and end face

    ◆ Flame-retardant, rugged and durable jacket


    Application

    ◆ High-density connectors, SFP and SFP+ transceivers, XFP transceivers

    ◆ Datacom and telecom; GPON; EPON; GBIC

    ◆ Measurement equipment, single mode lasers

    ◆ Main, horizontal, and zone distribution areas

    ◆ Local Area Network and telecommunication networks

    ◆ CCTV & CATV


    Specification

    1. Operating & Storage Temperature


    Parameters

    Min

    Max

    Unit

    1

    Operating Temperature

    -40

    85

    °C

    2

    Storage Temperature

    -40

    85

    °C


    2. Optical Performance

    Item

    SM

    MM


    1310nm/1550nm IL(dB)

    1310nm/1550nm RL(dB)

    850nm IL(dB)

    850nm RL(dB)

    PC

    <=0.20

    >=50

    <=0.30

    >=25

    APC

    <=0.30

    >=60

    N/A

    N/A


    3. Geometry Parameters

    UPC

    Item

    Pass/Fail

    Parameters

    Min

    Max

    ROC

    7.0mm

    25.00mm

    Fiber Height

    -100.0nm

    50.0nm

    Apex Offset

    0.00μm

    50.00μm


    APC

    Item

    Pass/Fail

    Parameters

    Min

    Max

    ROC

    5.0mm

    12.00mm

    Fiber Height

    -100.0nm

    50.0nm

    Apex Offset

    0.00μm

    50.00μm

    APC Angle

    7.700deg

    8.300deg

    Key Error

    -0.500deg

    0.500deg


    4. Details Picture


    Standard Package



    Product Advantages


    ◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.

    ◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.

    ◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.

    ◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.


    ORC QC Process Flow Chat



    FAQ


    1. Q: How can you test a single mode jumper?

    A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.


    2. Q: Are these cables compatible with a variety of modules?

    A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.


    3. Q: What's your average lead time?

    A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.


    4. Q: Can you produce according to the samples we send you?

    A: Of course, we can produce according to your samples or technical drawings.
