Brand Name : | OEM |
Model Number : | SN/UPC-SN/UPC-2F-OM3-2.0-L-3M |
Certification : | ISO9001 |
Price : | Negotiation |
Payment Terms : | T/T, Western Union, L/C |
Supply Ability : | 1000,000 connectors/month |
Delivery Time : | 3-7 work days |

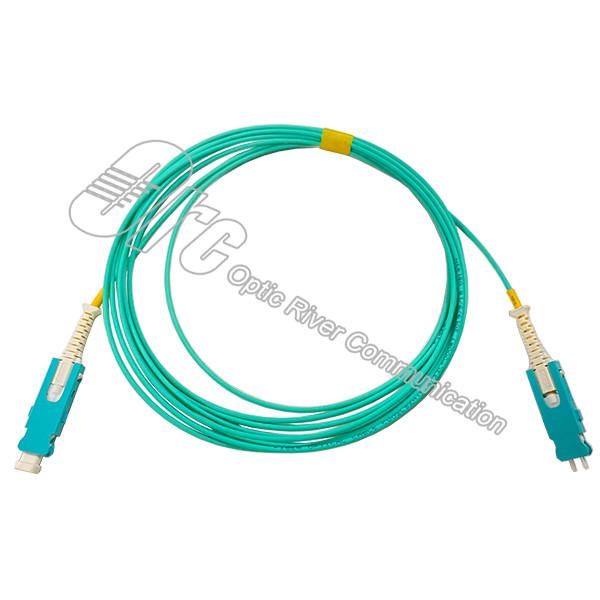

Duplex Connector OM3 Fiber Optic Patch Cord For 400G Transceiver
Duplex Connector SN - SN Multi Mode Fiber Optic Patch Cord Aqua Sheath For 400G Transceiver
SN Connector NEW Duplex connector optimized for 400G new generation Data Center
The SN® connector was designed to provide individual and independent duplex fiber breakout at a quad style transceiver (QSFP, QSFP-DD, OSFP) as a more efficient, increased reliability, and a lower cost alternative than the MPO connector.
The SN® connector can be used for fiber applications such as PSM4, SR4, DR4, DR4+ and SR4.2 modules at the transceiver where MPO is commonly used now.
SN® is a push-pull style connector which allows for high density layout. Even though SN® allows up to 4 times higher density compared to duplex LC connector, the required quality, optical, and mechanical performance can be maintained.
Features of SN Duplex fiber optic patch cord
◆ Designed for OSFP/QSFP-DD Break out application
◆ IEC random mating Grade B
◆ Proven 1.25 mm Ferrule technology
◆ 4 Duplex connectors (total 8-fibers) in OSFP/QSFP-DD footprint
◆ Effective size reduction compared to LC Duplex
SN to SN Fiber Optical Patchcord Applications
◆ 4 x SN in 1 transceiver
◆ QSFP-DD 400G DR4
◆ SN fiber optical patch panel
SN® fiber optical connector has some advantages compared to MPO
• Easy break out/simple network structure
• Easy cleaning/maintenance of the ferrule end face
• Proven stable optical performance

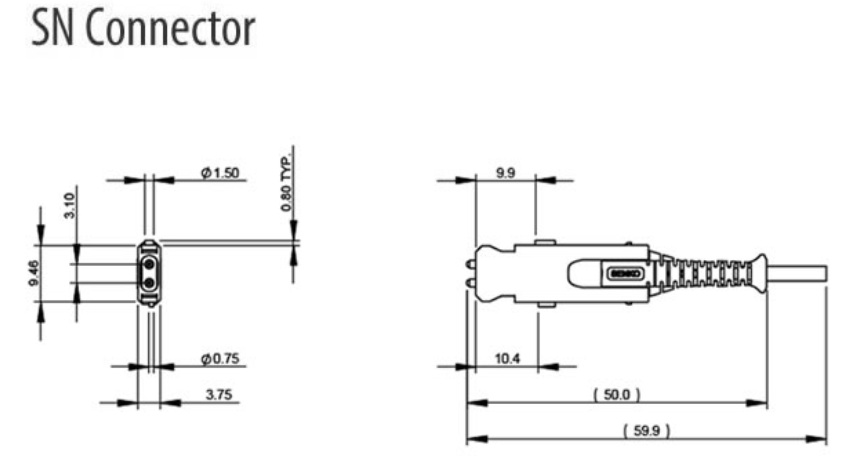

Drawing for SN fiber optical connector
![]() |
