    FC / UPC - LC / UPC Duplex 2.0mm Fiber Optic Patch Cord Single Mode For Ftth

    Ask Lasest Price
    Brand Name : OEM
    Model Number : FC/UPC-LC/UPC-2F-2.0-3M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 15000 connectors/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    FC / UPC - LC / UPC Duplex 2.0mm Fiber Optic Patch Cord Single Mode For Ftth

    Fiber optical patch cord FC/UPC - LC/UPC duplex 2.0mm single mode G657A LSZH cable for Ftth

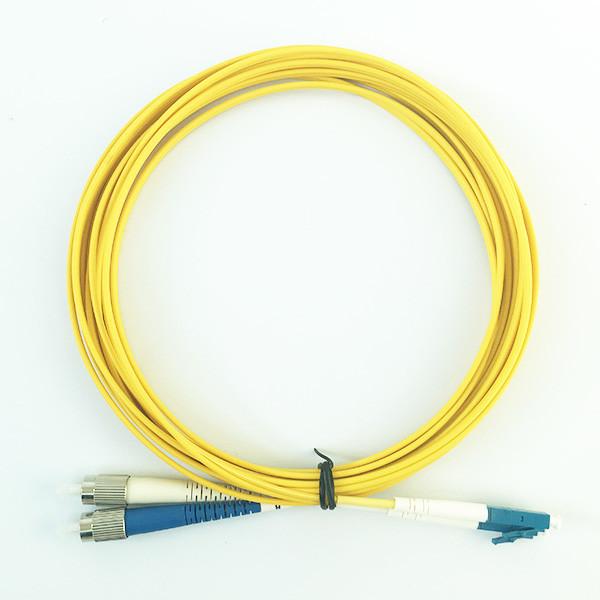

    FC-LC duplex SM 2.0mm LSZH G657A standard patch cord has blue and white boot for the FC connector to make the distinguishing of RX and TX. Of course, we could also customize the color according to clients demand or add marks on cables.
    Features
    Strict Incoming Quality Control on the connectors, ferrules, cables
    100% engineering drawing transformed according to clients demand
    Strict IPQC according to the engineering drawing
    100% OQC
    Application

    Optical fiber testing equipment such as IL/RL testing instrument
    Fiber optical switch, ONU, media converter, transceiver
    LAN and WAN
    Fiber To The Home
    Telecommunication networks
    ◆ CCTV & CATV
    Specification

    1. Operating & Storage Temperature

    ParametersMinMaxUnit
    1Operating Temperature-4085°C
    2Storage Temperature-4085°C

    2. Optical Performance

    ItemSMMM
    1310nm/1550nm IL(dB)1310nm/1550nm RL(dB)850nm IL(dB)850nm RL(dB)
    PC<=0.20>=50<=0.30>=25
    APC<=0.30>=60N/AN/A


    3. Geometry Parameters

    UPC
    ItemPass/Fail
    ParametersMinMax
    ROC7.0mm25.00mm
    Fiber Height-100.0nm50.0nm
    Apex Offset0.00μm50.00μm

    APC
    ItemPass/Fail
    ParametersMinMax
    ROC5.0mm12.00mm
    Fiber Height-100.0nm50.0nm
    Apex Offset0.00μm50.00μm
    APC Angle7.700deg8.300deg
    Key Error-0.500deg0.500deg

    Standard Package



    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    ORC QC Process Flow Chat
    FAQ
    1. Q: How can you test a single mode jumper?
    A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
    2. Q: Are these cables compatible with a variety of modules?
    A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
    3. Q: What's your average lead time?
    A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
    4. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
