    4.8MM Optical Patch Cord LSZH 1550nm For Base Station

    Ask Lasest Price
    Brand Name : OEM
    Model Number : LC/UPC-LC/UPC-2F-4.8-L-1M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000,000 connectors/month
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

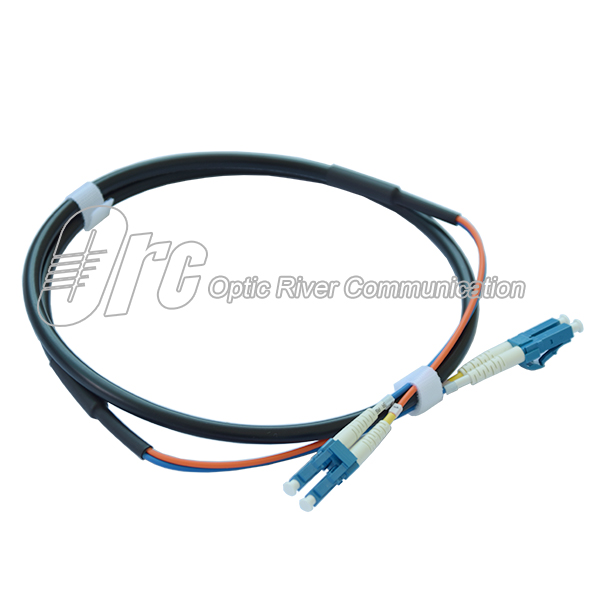

    4.8MM Optical Patch Cord LSZH 1550nm For Base Station

    LCD - LCD SINGLEMODE 4.8MM OUTDOOR BASE STATION PATCH CORD BLACK LSZH
    Description
    The CPRI patch cords are standard size for duplex LC connectors,widely used in FTTA, Base Station, and the outdoor waterproof condition. ORC supplies FTTA(Fiber to the Antenna) dual LC SM 2G.657A1 patch cords for TD-SCDMA,CDMA2000, 2G, 3G, 4G and 5G base station BBU-RRU outdoor.
    Product information
    Connector typeLC-LCPolish typeUPC
    Fiber number2Fiber modeG657A1
    Wavelength1310nm/1550nmConnector materialGood quality plastic
    Insertion loss<=0.3dBBranch materialArmored/LSZH
    Fiber gradeBend insensitiveBranch diameter2.0mm/0.9mm
    Cable jacketLSZHMain cable diameter4.8mm dual core
    PolarityA(Tx)-B(Rx)Operating temperature-20-+60℃

    Features
    Standard duplex connector, well connected with standard LC adapter
    Available single mode and multimode
    Low insertion loss, steady optical transmitting
    Endface inspection, IL/RL testing and 3D interferometer testing
    Connector utilizing UPC polish
    Applications
    Satellite station
    Outdoor emergent wiring system
    Field wiring system
    Optical communication equipment
    Drawing and cable length tolerance
    Length Tolerance
    L<1M±0.08M
    1M≤L<20M±0.10M
    L≥20M±1%M


    Standard package
