    Duplex G657A2 Fiber Optical Patchcord Single Mode LC To LC

    Ask Lasest Price
    Brand Name : OEM
    Model Number : LC/APC-LC/UPC-2F-SM-2.0-L-5M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000,000 connectors/month
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

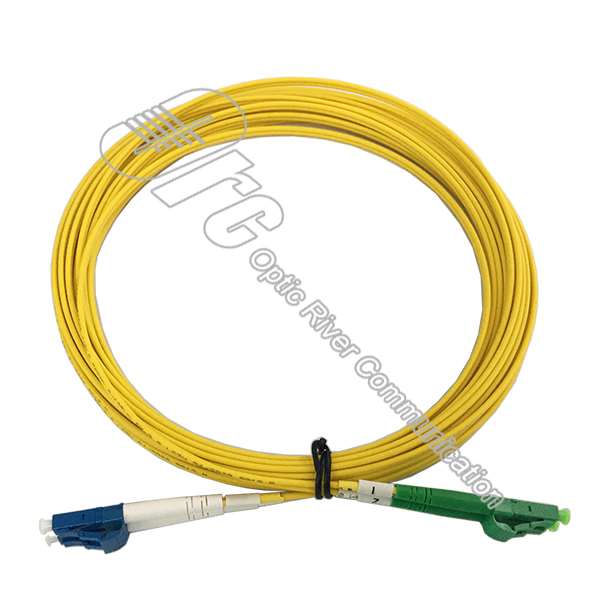

    Duplex G657A2 Fiber Optical Patchcord Single Mode LC To LC

    LC/APC-LC/UPC fiber optical patchcord G657A2 single mode duplex
    OFNP VS. OFNR
    OFNP cables have fire-resistance and low smoke production characteristics. This is the highest fire rating fiber cable and no other cable types can be used as substitutes. So these cables are mostly installed in plenum areas. Whereas, the fiber-resistance and low smoke of OFNR cables are not good as OFNP. OFNP plenum cables can be used as substitutes for OFNR cables. Through OFNR vs. OFNP, it is worth noticing that OFNR fiber optic cable cannot be used in plenum areas to replace OFNP cables, however, the latter can be used in the riser areas. Both OFNP and OFNR can be used in general purpose areas.
    Product information
    Connector typeLC to LCPolish typeAPC
    Fiber number1Fiber modeG.657A2
    Wavelength1310nm/1550nmConnector materialPlastic housing and boot
    Insertion loss≤0.3dBFerrule diameter1.25mm
    Fiber gradeBend insensitiveReturn loss≥60dB
    Cable jacketLSZHCable diameter2.0mm riser cable
    PolarityA(Tx)-B(Rx)Operating temperature-20-+60℃

    Features
    100% optically inspected and tested for insertion loss
    ROHS and Reach compliant
    Pull proof jacket
    Available in custom length and colors
    Applications
    Building interconnections(campus LAN)
    Trunking lines direct to telecommunications closet
    Links between electronic equipment and fiber patch panels
    Fiber patch panels within communications closet
    Drawing and cable length tolerance
    Length Tolerance
    L<1M±0.08M
    1M≤L<20M±0.10M
    L≥20M±1%M
