Features

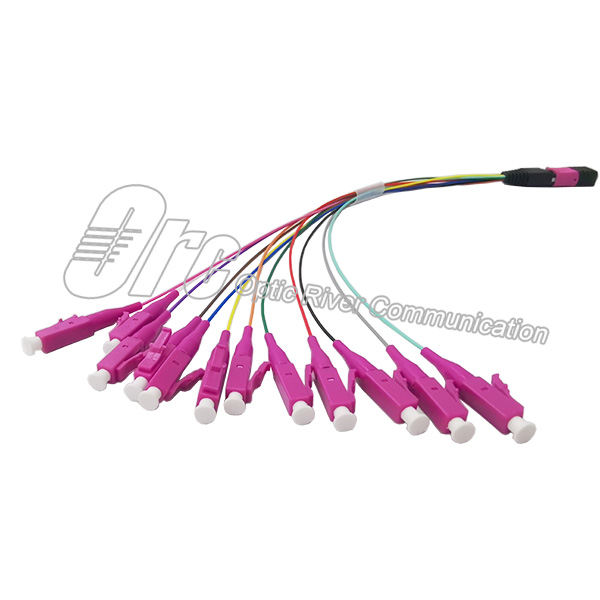

· MPO-LC connectors;
· 4Fibers, 8Fibers, 12Fibers or 24Fibers version on request;
· UPC or APC polish available;
· Any other connector type at another side upon request;
· Fan-out on request;
· Superior quality standard /UPC/APC polishing;
· 100% factory test (Insertion Loss & Return Loss);
· 0.9mm, 2.0mm and 3.0mm cable optional.
Application
- Telecommunication networks
- Data centers
- Supports SFP, QSFP, CFP applications
- 40G to 10G transition
- CATV;
- Active device termination;
- Telecommunication networks;
- Metro;
- Local Area Networks;
- Data processing networks
- Test equipment;
- Premise installation;
- Wide Area Networks
Specification
1. Operating & Storage Temperature
| Parameters | Min | Max | Unit |
1 | Operating Temperature | -40 | 70 | °C |
2 | Storage Temperature | -40 | 70 | °C |
2. Optical Performance
Item | Parameters |
MPO/MTP® Connector | SM(1310nm/1550nm) | MM(850nm) |
Standard | Low Loss | Standard | Low Loss |
Insertion Loss | Typical | 0.5dB | 0.2dB | 0.5dB | 0.2dB |
Maximum | 0.7dB | 0.35dB | 0.7dB | 0.35dB |
Return Loss | >=60dB for APC | -- |
>=40dB for PC | >=20dB for PC |
Male/Female | Male: with Pin; Female: without Pin |
LC/FC/SC Connector |
Item | SM | MM |
| 1310nm/1550nm IL(dB) | 1310nm/1550nm RL(dB) | 850nm IL(dB) | 850nm RL(dB) |
PC | <=0.2 | >=50 | <=0.3 | >=25 |
APC | <=0.3 | >=60 | N/A | N/A |
3. Geometry Parameters
MT |
Measurement | Pass/Fail Limits |
Parameters | Min | Max |
|
|
|
Radius of Curvature | Long Axel | 2000mm | ∞ |
Short Axel | 50mm | ∞ |
Angle | Long Axel | -0.2° | 0.2° |
Short Axel | APC | 7.8° | 8.2° |
PC | -0.2° | 0.2° |
Fiber Height | 1000nm | 3000nm |
Different Fiber Height | N/A | 500nm |
Adjacent Fiber Height | N/A | 300nm |
Ferrule Length | 7.9mm | N/A |
FC/LC/SC UPC |
Item | Pass/Fail |
Parameters | Min | Max |
FC ROC | 10.00mm | 25.00mm |
LC ROC | 7.00mm | 25.00mm |
Fiber Height | -100.00nm | 50.00nm |
Apex Offset | 0.00μm | 50.00μm |
FC/SC/LC APC |
Item | Pass/Fail |
Parameters | Min | Max |
ROC | 5.0mm | 12.00mm |
Fiber Height | -100.0nm | 50.0nm |
Apex Offset | 0.00μm | 50.00μm |
APC Angle | 7.700deg | 8.300deg |
Key Error | -0.500deg | 0.500deg |
4. Connector Detail
Product Advantages
◆ We passed many quality system vertification, like ISO, RoHS; and
passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity
is 15,000 connectors/day and MT product capacity is 3000
connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested
individually in our production line as well as 100% tested by the
QC department.
◆ Our service is qualified. We insist on responsive and
knowledgeable service to each customer.
ORC QC Process Flow Chat
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in MPO Patch Cable, MPO Breakout Cable, Fiber Optic Patch Cord, Fiber Optic PLC
Splitter. Our products are mainly exported to Europe, South America, and
some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop
cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC
ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001
ROHS raw material suppliers
