    FC / APC To LC / APC Fiber Optic Patch Cord 2.0mm 8° Angel Polishing Low Insertion Loss

    Ask Lasest Price
    Brand Name : OEM
    Model Number : FC/APC-LC/APC-1F-2.0-1M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 15000 connectors/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

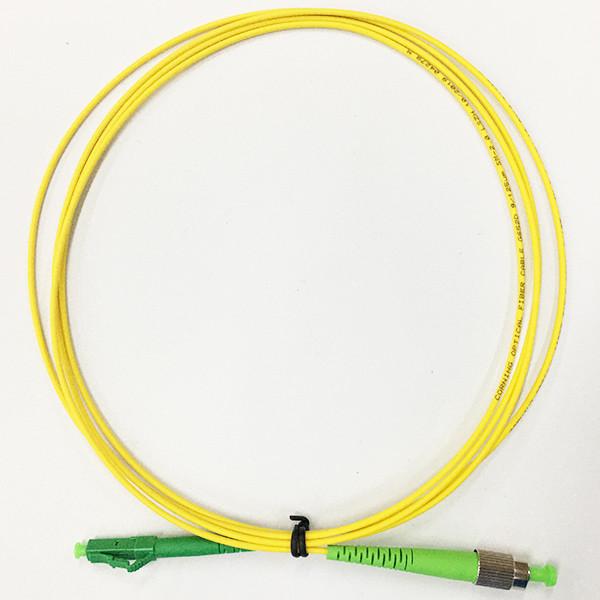

    FC / APC To LC / APC Fiber Optic Patch Cord 2.0mm 8° Angel Polishing Low Insertion Loss

    FC / APC to LC / APC Fiber Optic Patch Cord 2.0mm Single Fiber cable 8° angel polishing
    A fiber optic patch cord is a length of fiber optical cable which both ends are terminated with connectors that allows it to be rapidly and conveniently connected to fiber optical communication equipment. APC type polishing solution here is suitable for the situation where back reflections must be kept to a minimum, such as CATV and RF applications.
    Features
    Multiple connector choice: SC, LC, FC, ST, MTRJ, MU, E2000 and so on
    Fiber diameter: 0.9mm, 2.0mm, 3.0mm
    Low insertion loss, high return loss, high dense connection and easy for operation
    Customer length and connector are available upon request
    Application

    ◆ Connection of optical transmission equipment
    ◆ High speed data transmission network
    ◆ CATV, sensor systems, measurement equipment
    ◆ Utilise, railway
    ◆ Single-mode lasers
    ◆ Data center patch panel, rack
    Specification

    1. Operating & Storage Temperature

    ParametersMinMaxUnit
    1Operating Temperature-4085°C
    2Storage Temperature-4085°C

    2. Optical Performance

    ItemSMMM
    1310nm/1550nm IL(dB)1310nm/1550nm RL(dB)850nm IL(dB)850nm RL(dB)
    PC<=0.20>=50<=0.30>=25
    APC<=0.30>=60N/AN/A


    3. Geometry Parameters

    UPC
    ItemPass/Fail
    ParametersMinMax
    ROC7.0mm25.00mm
    Fiber Height-100.0nm50.0nm
    Apex Offset0.00μm50.00μm

    APC
    ItemPass/Fail
    ParametersMinMax
    ROC5.0mm12.00mm
    Fiber Height-100.0nm50.0nm
    Apex Offset0.00μm50.00μm
    APC Angle7.700deg8.300deg
    Key Error-0.500deg0.500deg


    Standard Package



    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    ORC QC Process Flow Chat
    FAQ
    1. Q: How can you test a single mode jumper?
    A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
    2. Q: Are these cables compatible with a variety of modules?
    A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
    3. Q: What's your average lead time?
    A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
    4. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
