    High Density Single Mode Fiber Patch Cord Jumper Cs - Fc 2.0mm For Optical Transceiver

    Ask Lasest Price
    Brand Name : OEM
    Model Number : CS/UPC-FC/UPC-2F-2.0-1M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000,000 connectors/month
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    High Density Single Mode Fiber Patch Cord Jumper Cs - Fc 2.0mm For Optical Transceiver

    DUPLEX HIGH DENSITY FIBER JUMPER CS - FC 2.0MM SINGLEMODE FOR OPTICAL TRANSCEIVER
    Product parameter
    Connector typeCS®-FCDPolish typeUPC(or APC)
    Fiber numberDuplexFiber modeSM(or OM3/OM4/OM5)
    Wavelength1310nm/1550nmCS® connector width7.85mm
    Insertion loss<=0.3dBReturn loss>=50dB
    CS® push-pull tab length48/55/62/69mm optionalCable diameter2.0mm
    PolarityA(Tx)-B(Rx)Operating temperature-20-+60℃

    Standard performance qualifications
    TIA 568
    ◆ GR326
    IEC 6130-3-34
    Features and advantages
    Proven 1.25mm ferrule technology
    ◆ Designed for OSFP/QSFP-DD break out application
    39% size reduction compared to LC Duplex
    Push-pull tab
    ◆ IEC random mating Grade B
    CS® connector enables two duplexes in a single QSFP-DD/OSFP transceiver
    ◆ Push and pull tab for a better usability in high density applications
    Double the density compared to LC

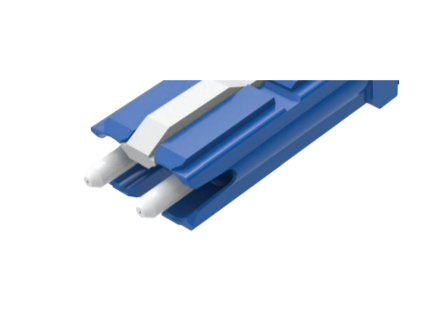

    A brief introduction of SENKO CS® connector

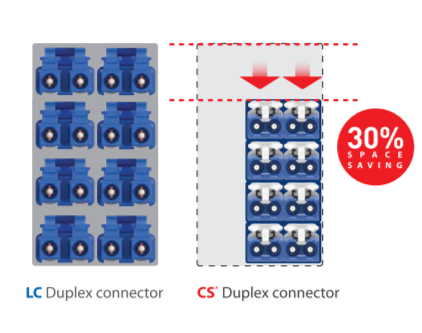

    40% size reduction compared to LC Duplex
    30% vertical density reduction compared to LC Duplex
    Proven 1.25mm ferrule technology
    Push/pull tab
    Designed for OSFP/QSFP-DD break out application
