    ST/PC To ST/PC Duplex Multi Mode Patch Cord OM2 3.0mm G652D

    Ask Lasest Price
    Brand Name : OEM
    Model Number : ST/UPC-ST/UPC-2F-3.0-P-2M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000,000 connectors/month
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

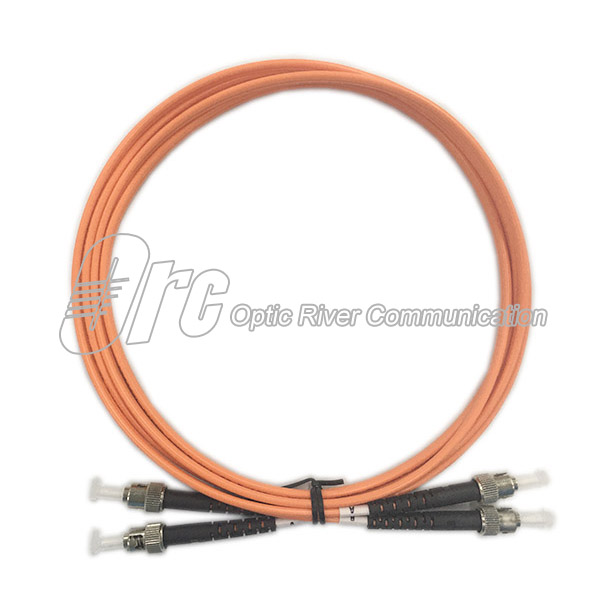

    ST/PC To ST/PC Duplex Multi Mode Patch Cord OM2 3.0mm G652D

    ST/PC to ST/PC Multi Mode Duplex Networing Patch Cord Orange OM2 3.0mm Zipcord
    Description
    OM2 ST-ST fiber patch cable is ready for deployment in any 50/125 network. 50/125 networks support longer cable distances with lower loss than a 62.5/125 networks. This multimode, duplex fiber cable is comprised of corning optical fiber with ceramic connectors. The connectors utilize a UPC (Ultra Physical Contact) polish which provides a better surface finish with less back reflection. It has an orange plenum zipcord jacket.
    Product information
    Connector typeST-STPolish typeUPC
    Fiber number2Fiber modeOM2
    Wavelength850nmConnector materialMetal housing and plastic boot
    Insertion loss<=0.3dBMax transmission distance600M
    Fiber gradeBend insensitiveData rate1GB @ 850nm
    Cable jacketOFNPCable diameter3.0mm zipcord
    PolarityA(Tx)-B(Rx)Operating temperature-20-+60℃

    Features
    High concentricity 2.5mm ceramic ferrule for SC, FC, ST; 1.25mm ceramic ferrule for LC and MU
    Ceramic ferrules provide precise alignment
    Ideal for connecting 1000BASE-SX, SFP transceivers etc. for gigabit Ethernet and fiber channel applications
    Connectors utilize a UPC polish
    Endface inspection, IL/RL testing and 3D interferometer testing
    Applications
    Used to connect patch panels and/or network devices that utilize duplex ST-ST style connectors and require OM2 50/125 multimode cabling
    ◆ Optical communication system
    ◆ Optical fiber CATV
    ◆ FTTX+LAN
    ◆ Telecommunication
    Drawing and cable length tolerance
    Length Tolerance
    L<1M±0.08M
    1M≤L<20M±0.10M
    L≥20M±1%M


    Standard package
