    SC/UPC-SC/UPC 2M LSZH 0.9MM SM Fiber Patch Cables

    Ask Lasest Price
    Brand Name : OEM
    Model Number : SC/UPC-SC/UPC-1F-0.9-L-2M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000,000 connectors/month
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

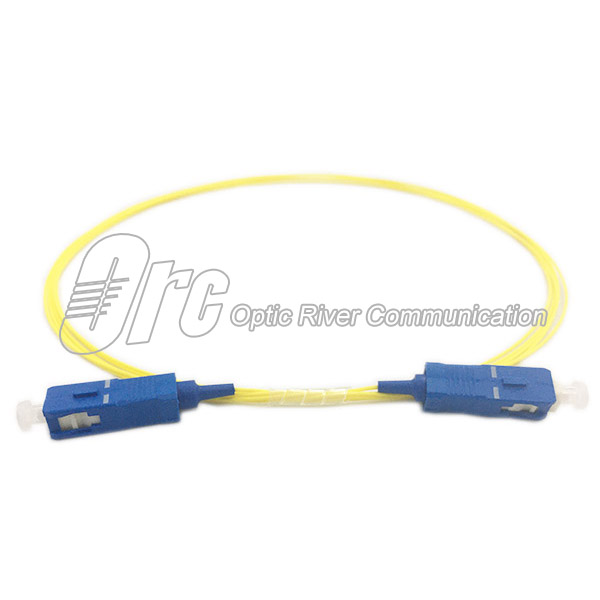

    SC/UPC-SC/UPC 2M LSZH 0.9MM SM Fiber Patch Cables

    CORNING FIBER OPTIC SC/UPC-SC/UPC 0.9MM SM PATCH CORD 2M LSZH
    Description
    ORC offers an extensive line of SC to SC 9/125µm single mode simplex fiber patch cables with many choices of different length, jacket material, polishing style, and cable diameter. Those SC to SC 9/125µm single mode fiber patch cables support long transmission distances with lower loss. They are manufactured with the high-quality optical fiber and ceramic connectors, and are strictly tested for insertion and return loss to ensure superior performance.
    Product parameter
    Connector typeSC-SCPolish typeUPC
    Fiber numberSimplexFiber modeG657A1 9/125μm
    Wavelength1310nm/1550nmFerrule2.5mm ceramic
    Insertion loss<=0.3dBReturn loss>=50dB
    Fiber gradeBend insensitiveMinimum bend radius10.0mm
    Diameter0.9mmBufferTight buffer
    PolarityA(Tx)-B(Rx)Operating temperature-20-+60℃

    Main features
    Endface inspection, IL/RL testing and 3D interferometer testing
    100% inspected for optical characteristics before shipment
    High concentricity 2.5mm ceramic ferrule for SC, FC, ST; 1.25mm ceramic ferrule for LC and MU
    YOFC bend insensitive fiber optic glass
    Widely utilized in data communication and telecommunication networks
    Quality certifications

    FAQ


    Q: What's your main products?

    A: 1, Standard patch cord/pigtails for FTTx---SC/LC/FC/ST/MU/MTRJ/E2000 connectors with OM1/2/3/4/5&OS1/2 cable

    2, MPO/MTP® trunk cable
    3, MPO/MTP® fanout/breakout/harness cable
    4, Pre-terminated multi fiber cables
    5, Patch panel, MPO cassette and rack(Metal plate products support OEM also. We can produce according to your design)
    6, 40G/100G fiber optic transceiver package series like AWG, MT, Free Space Isolator
    7, Indoor/Outdoor Cables
    8, Fiber Optical Splitters

    Q: How about the freight?

    A: We can deliver the goods by your own express accounts such as DHL, UPS and Fedex if small quantity. At the same, we have long-term cooperated shipping agent who can offer a cost-effective transportation case for you.


    Q: Could I have a free sample for testing?

    A: Yes, most of the time we offer free samples for our customers, but you should bare the international freight by yourself.


    Q: How long is your warranty period?

    A: The average warranty period is 12 months.
