    SC To LC G657A1 Pre Terminated Multi Fiber Cables With 1.8mm Fanout

    Ask Lasest Price
    Brand Name : OEM
    Model Number : SC/APC-LC/APC-12F-5.0-L-10M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000,000 connectors/month
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    SC To LC G657A1 Pre Terminated Multi Fiber Cables With 1.8mm Fanout

    SC To LC G657A1 Pre Terminated Multi Fiber Cables With 1.8mm Fanout

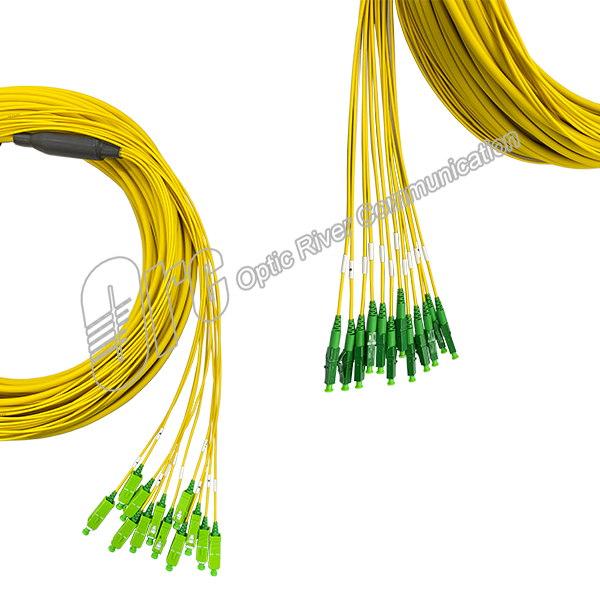

    Multi Fiber Patch Cord, SC To LC, Single-Mode Cable 12 Cores With 1.8mm Fanout


    Pre-terminated SC to LC Multi-Fiber Patch Cord Single-mode is a multi-strand fiber patch cable built on indoor 4,6,8,12,24 core distribution fiber trunk cable, with LC/SC connectors terminated directly on both ends of 1.8mm fanout legs. Fiber trunk cables are a convenient and economical alternative to running multiple jumpers or individual fiber cables in data centers, telecommunication rooms.


    Multi fiber patchcord features


    • Factory pre-terminated multi-fiber patch cord cable eliminates the need for fleld terminations or splices, save on-sitelabor cost;
    • Multi-strand fiber cable from 2 to 144 cores;
    • Single-mode G652D, G657.A2 or customized fibers;
    • 100% factory tested with complete test results;
    • Custom length, staggering, connector type, far-out style, and labeling;

    • Pulling eye available for connector protection, on-site easy and quick installation;

    • SC, LC, ST, FC, MTRJ, MU, DIN, D4 connectors available and PC, UPC or APC connector polishing available.


    Main specification of 12 core SC-LC pre-terminated fanout cable


    ConnectorsSC / ST / FC / LC / MTRJ / DIN / MU / LX.5 / D4 / SMA
    FerruleCeramic
    Optical fiberSM 9/125um; OM1 (50/125), OM2(62.5/125), OM3(MM 10Gig), OM4
    Cable jacketPVC, OFNR(Riser), OFNP(Plenum), LSZH(Low Smoking Zero Halogen)
    Cable strand2,4,6,12,24, 48 cores
    Optical specificationlL(Max.) ≤0.3dB;
    RL PC≥45dB, UPC≥50 dB, APC≥60dB
    Repeatability≤0.2dB 1,000 times mating cycles
    Working temperature-25℃- +75℃
    Storage temperature-45C- +85C

    Drawing for 12 strand SC-LC patchcord
