    24 Cores 5.0mm Pre Terminated Multi Fiber Cables Yellow Sheath

    Ask Lasest Price
    Brand Name : OEM
    Model Number : LC/APC-LC/APC-24F-5.0-15M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000,000 connectors/month
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    24 Cores 5.0mm Pre Terminated Multi Fiber Cables Yellow Sheath

    24 Cores 5.0mm Pre Terminated Multi Fiber Cables Yellow Sheath


    Pre Connectorized Fiber Optic Cable 24 Cores 5.0mm OS2 LSZH Yellow Sheath


    Pre-terminated fiber cable assemblies, using the plug-and-play designed modules and cables, can largely improve the working efficiency, increase cabling density and decrease the total data center installation cost. In addition, the factory terminated fiber cable assemblies eliminate the need of fiber optic splicing and provide higher performance compared with field terminated fiber optic cables.


    Details of LC/APC-LC/APC Pre-terminated Patch Cord

    Jacket Color: Yellow

    Length: 15 Meter (or customized length)

    Core / Cladding: Singlemode 9/125 Corning Glass

    Strand Count: 24 Strand

    Jacketing: LSZH Indoor Outdoor

    Max Attenuation: 1310 nm: 0.5 dB/km or at 1550 nm: 0.4 dB/km

    Furcation Tubing: Shortest legs will be 0.5M

    Environment Operating Temperature: -40°C to +70°C

    Standards Attenuation tested in accordance with EIA/TIA-455-171A

    Compliance RoHS Compliant


    Available options for the pre-terminated cable

    End 1

    LC/APC(SC, FC, ST, E2000 ect. are optional)

    End 2

    LC/APC(SC, FC, ST, E2000 ect. are optional)

    Number of fibers

    24

    Fiber type

    Singlemode 9/125 OS2(Multimode OM1, OM2, OM3, OM4, OM5 optional)

    Cable type

    Indoor dry structure fiber optical cable

    Breakout cable type

    1.80mm yellow jacket

    Jacket color

    Yellow

    Jacket material

    LSZH(OFNR/PVC, OFNP optional)

    Total length

    Choose length

    Breakout length

    Choose from standard 0.5m or 1m

    Polarity

    Straight through(specify if different)

    Duplex clips

    Specify if required


    Features

    Large range of cable and connector options to suit a variety of applications;

    Reduced equipment cost, training and skill base required for installation;

    Faster and less disruptive installations;

    Telcordia GR-1435-CORE issue 2 compliant;

    High quality, machine polished connectors for consistent low loss performance;

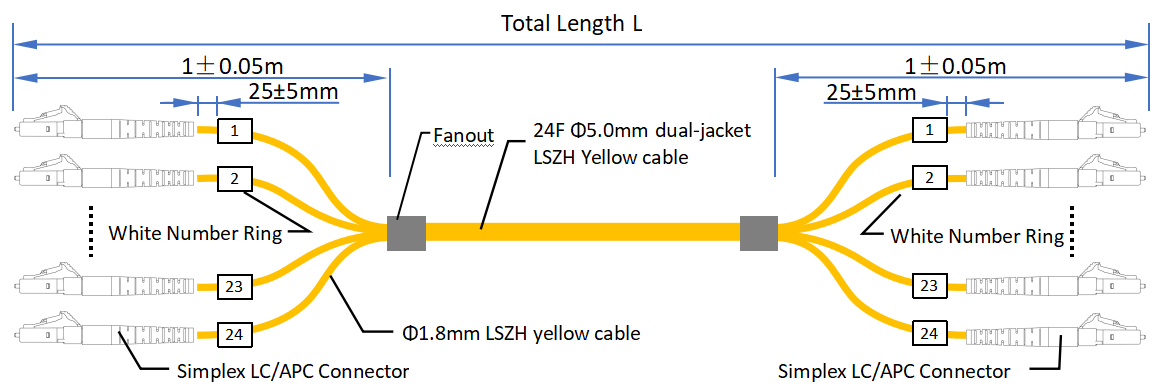

    Drawing for reference


    FAQ

    Q1, What is your sample policy?
    We can supply free sample for comment fiber optic devices, but the customers have to pay the courier cost.


    Q2, Do you test all your goods before delivery?
    Yes, all goods are 100% tested before final packing and delivery. Test reports can be provided if necessary.

    Q3, How do you assure the long-term business and keep good partnership?
    Firstly, we keep persistent improvement to make better quality products and provide better service while maintain the competitive prices to ensure the customers’ benefit. Besides, we respect every customer as our friends and appreciate for every small or big order.
