    Type B LSZH 40GB OM4 MPO Patch Cable Fiber Optic Cable Patch Cord

    Ask Lasest Price
    Brand Name : OEM
    Model Number : MPO-MPO-12F-F-3.0-OM4-B-1M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 3000 connectors/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    Type B LSZH 40GB OM4 MPO Patch Cable Fiber Optic Cable Patch Cord

    Type B LSZH 40GB OM4 MPO Patch Cable Fiber Optic Cable Patch Cord

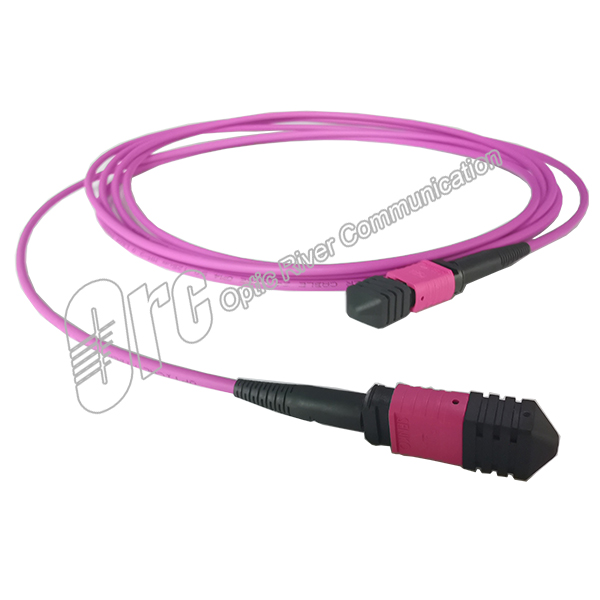

    Fiber Optic Cable Patch Cord 40GB MPO To MPO 12F OM4 Magenta LSZH


    With this MTP/MPO fiber cable, you are ready for deployment in any multi mode 50/125 MTP/MPO network. Multi mode 50/125 cables are best used for the push-on connectors hold them securely in place. This multi mode, MTP/MPO fiber cable is comprised of 12 fibers or 6 duplex channels within each connector. These high density cables are perfect when you have limited space and but still want that great fiber connection. It has a magenta, LSZH jacket.


    Features of MM OM4 MPO-MPO Patch Cord


    • Factory-terminated provide consistent quality, high performance and reduce installation time
    • 100% tested for low insertion loss performance and high back reflection
    • Fiber Count: 12 fiber trunk cable
    • Laser-Optimized multimode OM4 fiber
    • Type B polarity, used for 40G QSFP eSR4 and 100G QSFP28 SR4 optics
    • Optimized performance – available in elite MTP and discrete premium connector upon request
    • Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE and RoHS
    • LSZH Jacket by Default

    Applications of 12F MPO to MPO Trunk Cable



    • Fiber Network Deployments

    • Fast Ethernet

    • Gigabit Ethernet

    • Other Data Applications Requiring High Transfer Rates

    Specification of OM4 MPO Trunk Cable


    Fiber Type

    50/125µm Multimode OM4

    Fiber Count

    12-Fiber

    Connector Type

    MPO Female to MPO Female

    Polishing

    PC to PC

    Cable Length

    1m,2m,3m … 400m or Customize

    Cable Diameter

    3.0 mm

    Insertion Loss≤0.6dBReturn Loss≥20dB
    PolarityType B(Crossover)Durability≥200 times
    Jacket MaterialLSZHJacket ColorMagenta
    EnvironmentOperating: -20°C to 70°C
    Storage: -40°C to 85°C
    ApplicationOptical switching interframe connections;
    High-density fiber card edge access;
    Array trunk cables;
    Data Center Cabling

    Geometry Parameters


    Measurement

    Pass/Fail Limits

    Parameters

    Min

    Max

    Radius of Curvature

    Long Axel

    2000nm

    Short Axel

    50mm

    Angle

    Long Axel

    -0.2°

    0.2°

    Short Axel

    APC

    7.8°

    8.2°

    PC

    -0.2°

    0.2°

    Fiber Height

    1000nm

    3000nm

    Different Fiber Height

    N/A

    500nm

    Adjacent Fiber Height

    N/A

    300nm

    Ferrule Length

    7.9mm

    N/A


    Optical Performance


    Optical Performance

    Item

    Parameters

    MTP/MPO Connector

    SM (1310nm/1550nm)

    MM (850nm)

    Standard

    Low Loss

    Standard

    Low Loss

    Insertion Loss

    Typical

    0.50dB

    0.20dB

    0.50dB

    0.20dB

    Maximum

    0.70dB

    0.35dB

    0.70dB

    0.35dB

    Return Loss

    ≥60dB for APC

    ≥20dB for PC

    ≥40dB for PC

    --

    Male/Female

    Male: with Pins, Female: without Pins



    Standard Package



    Product Advantages


    ◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.

    ◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.

    ◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.

    ◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.


    Choose Your Polarity


    ORC QC Process Flow Chat



    Frequent Q&A


    Q: Are MTP and MPO cables the same thing?

    A: MTP and MPO cables are essentially the same thing. MPO is the generic name for the connector type while MTP is a registered trademark name and design from Us Connec. The two connector types are backwards compatible and work with all MTP/MPO cassettes and patch panels. The main difference is that MTP was designed for superior mechanical and optical performance over MPO.

    Q: What is the difference between OM1 OM2 and OM3 fiber?

    A: OM2 can be run further with less loss than OM1 fiber. OM3 fiber can run even further than OM2 cables with less loss. OM3 fiber cables have a bandwidth of 2000 MHz*km. They can support 10GB transmissions up to 300 meters and 40/100GB transmissions up to 100 meters.

    Q: Can I use any fiber patch cable in my network or do I have to order a specific type?

    A: Whenever you need to add more fiber to an existing network you must match the mode (single mode or multimode) micron size (62.5/125 or 50/125) and connector type.
