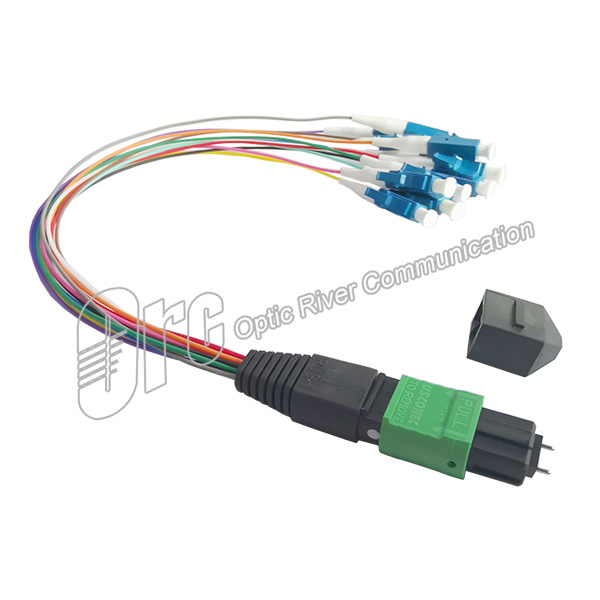

0.9mm MPO To LC Breakout Cable G657A2 12 Fiber Harness Cable
MPO to LC Fanout 0.9mm Harness Cable
MPO and MTP are the MT series. Small size, Multi-channel is the
most prominent feature, which greatly facilitates the high-density
wiring. The MT series connectors have been widely applied to the
CATV, Multimedia, Gigabit Ethernet, active device interface, data
processing networks, telecommunication networks. The MPO can be 4
to 24 fibers, the MPO patchcord cable can be ribbon fiber or
breakout fiber, also, the MTP is available; the MT series patchcord
have low insertion loss and high precision guide pins exact
alignment.
Features
With 12-fiber and 24-fiber MPO/MTP connector standard
1) Available in SM, OM1,OM2, OM3 and OM4
2) Available in FC,LC, SC, ST, MU, and MTP
3) Interface polished type has PC, UPC and APC
4) Support use in attaching directly to 40/100G transceivers
5) Polarity options are Type A, B, or C (Method A& B are standard)
6) They are designed for high density applications requiring high
performance and speedy installation.
7) Harness cables provide a transition from multi-fiber cables to
individual fibers or duplex connectors.
Application
1) Gigabit Ethernet
2) Active Deviced/Transceiver Interface
3) CATV, Video and Multimedia
4) Premise Installations
5) Telecommunication Networks
Specification
1. Operating & Storage Temperature
| Parameters | Min | Max | Unit |
1 | Operating Temperature | -40 | 70 | °C |
2 | Storage Temperature | -40 | 70 | °C |
2. Optical Performance
Item | Parameters |
MPO/MTP® Connector | SM(1310nm/1550nm) | MM(850nm) |
Standard | Low Loss | Standard | Low Loss |
Insertion Loss | Typical | 0.5dB | 0.2dB | 0.5dB | 0.2dB |
Maximum | 0.7dB | 0.35dB | 0.7dB | 0.35dB |
Return Loss | >=60dB for APC | -- |
>=40dB for PC | >=20dB for PC |
Male/Female | Male: with Pin; Female: without Pin |
LC/FC/SC Connector |
Item | SM | MM |
| 1310nm/1550nm IL(dB) | 1310nm/1550nm RL(dB) | 850nm IL(dB) | 850nm RL(dB) |
PC | <=0.2 | >=50 | <=0.3 | >=25 |
APC | <=0.3 | >=60 | N/A | N/A |
3. Geometry Parameters
MT |
Measurement | Pass/Fail Limits |
Parameters | Min | Max |
|
|
|
Radius of Curvature | Long Axel | 2000mm | ∞ |
Short Axel | 50mm | ∞ |
Angle | Long Axel | -0.2° | 0.2° |
Short Axel | APC | 7.8° | 8.2° |
PC | -0.2° | 0.2° |
Fiber Height | 1000nm | 3000nm |
Different Fiber Height | N/A | 500nm |
Adjacent Fiber Height | N/A | 300nm |
Ferrule Length | 7.9mm | N/A |
FC/LC/SC UPC |
Item | Pass/Fail |
Parameters | Min | Max |
FC ROC | 10.00mm | 25.00mm |
LC ROC | 7.00mm | 25.00mm |
Fiber Height | -100.00nm | 50.00nm |
Apex Offset | 0.00μm | 50.00μm |
FC/SC/LC APC |
Item | Pass/Fail |
Parameters | Min | Max |
ROC | 5.0mm | 12.00mm |
Fiber Height | -100.0nm | 50.0nm |
Apex Offset | 0.00μm | 50.00μm |
APC Angle | 7.700deg | 8.300deg |
Key Error | -0.500deg | 0.500deg |
4. Connector Detail
Product Advantages
◆ We passed many quality system vertification, like ISO, RoHS; and
passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity
is 15,000 connectors/day and MT product capacity is 3000
connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested
individually in our production line as well as 100% tested by the
QC department.
◆ Our service is qualified. We insist on responsive and
knowledgeable service to each customer.
ORC QC Process Flow Chat
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face
inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP,
SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the
regular products. For the MT products, our capacity is 3000
connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical
drawings.
