Duplex Flat Indoor Fiber Optic Cable Single Mode LSZH G652 G657 G655 Type

    Buy cheap Duplex Flat Indoor Fiber Optic Cable Single Mode LSZH G652 G657 G655 Type from wholesalers

    Buy cheap Duplex Flat Indoor Fiber Optic Cable Single Mode LSZH G652 G657 G655 Type from wholesalers
    • Buy cheap Duplex Flat Indoor Fiber Optic Cable Single Mode LSZH G652 G657 G655 Type from wholesalers

    Duplex Flat Indoor Fiber Optic Cable Single Mode LSZH G652 G657 G655 Type

    Ask Lasest Price
    Brand Name : OEM
    Model Number : ORCA0013
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    Duplex Flat Indoor Fiber Optic Cable Single Mode LSZH G652 G657 G655 Type

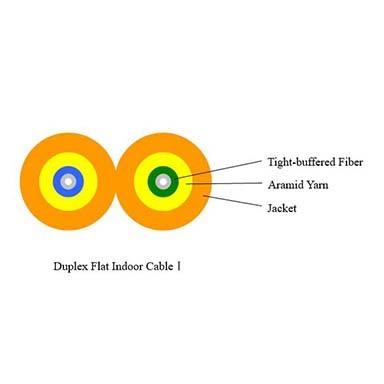

    Duplex Flat fiber optic cable indoor , single-mode 3.0mm LSZH G652 / G655 / G657
    ORC indoor/outdoor fiber optic cables include loose tube and tight buffer designs. These are available in a variety of configurations and jacket types to cover riser and plenum requirements for cable and the ability to be run in duct, direct buried or aerial/lashed in the outside plant.
    Features
    High kink resistance
    Wide temperature range
    Easy stripping
    Good mechanical and environmental characteristics
    Small bending radius
    Application

    Used as access building cable
    Indoor cabling
    For patchcords and pigtails
    Distribution system cable
    Cable Parameters
    Fiber CountCable Dimension(mm)Cable Weight(kg/km)Tensile(N)Crush(N/100mm)Min. Bend Radius(mm)Range of Temperature(℃)
    Long TermShort TermLong TermShort TermDynamicStatic
    21.6*3.34.46012020010005030-20-+60
    21.8*3.76.06012020010005030
    22.0*4.17.29015020010005030
    22.4*4.910.09015020010005030
    22.8*5.713.012022520010005030
    23.0*6.114.812022520010005030

    Note: 1. All the values in the table, which are for reference only, are subject to change without notice.

    2. D is outer diameter of the round cable.

    3. The minimum bend radius(static) is 5D when G.657 fiber is used.


    Options
    Fiber type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode cable, or other types of fiber;
    Jacket material: environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant polyolefin(LSZH), environmental halogen flame retardant polyolefin(ZRPO), environmental thermoplastic polyurethane(TPU), or other contracted material;
    Jacket color: (including color of fiber) meets the requirement of relevant standard, or other contracted color;
    Cable dimension: the nominal cable dimension, or other contracted dimension;

    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    ORC QC Process Flow Chat
    FAQ
    1. Q: What's your terms of payment?
    A: T/T 30% in advance, and rest 70% before delivery. When we reach deeper cooperation, we could support a payment period after authentication.
    2. Q: What's your average lead time?
    A: Our lead time is controlled within 2-5 working days for the regular products.
    3. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
