    MPO Adapter Panel Data Center Enclosures For Data Communication Cabling

    Ask Lasest Price
    Brand Name : OEM
    Model Number : MPO-MPO-6P
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 3000 connectors/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    MPO Adapter Panel Data Center Enclosures For Data Communication Cabling

    MPO adapter panel for data center rack utilized in the datacommunication cabling
    The MPO adapter front panel is developed as one part of ORC 1U 19" drawer rack, which can enrich the application of the data center rack. The standard MPO adapters mates with 8F, 12F, 24F or others MPO/MTP® male or female connectors.
    Features
    Female and Male MPO/MTP® option of Connectors
    Plug and Play, Small Form Factor
    Each cassette is 100% Pre-Tested in factory
    ◆ Support OEM&ODM
    Application

    ◆ Data Centre Infrastructure
    ◆ Fiber Optic Network Cabling
    ◆ FTTx in passive optical network
    ◆ IDF/MDF with space constraints
    Specification

    1. Operating & Storage Temperature


    ParametersMinMaxUnit
    1Operating Temperature-1070°C
    2Storage Temperature-4085°C

    2. Optical Performance


    TypeWavelengthI.L MaxR.L Min
    Elite MTP-LC(MM)850nm/1300nm0.35dB30dB
    Elite MTP-LC(SM)1310nm/1550nm0.35dB50dB
    MPO-LC(MM)850nm/1300nm0.6dB20dB
    MPO-LC(SM)1310nm/1550nm0.75dB50dB

    3. Geometry Parameters


    MT
    MeasurementPass/Fail Limits
    ParametersMinMax
    Radius of CurvatureLong Axel2000mm

    Short Axel50mm

    AngleLong Axel-0.2°0.2°
    Short AxelAPC7.8°8.2°
    PC-0.2°0.2°
    Fiber Height1000nm3000nm
    Different Fiber HeightN/A500nm
    Adjacent Fiber HeightN/A300nm
    Ferrule Length7.9mmN/A

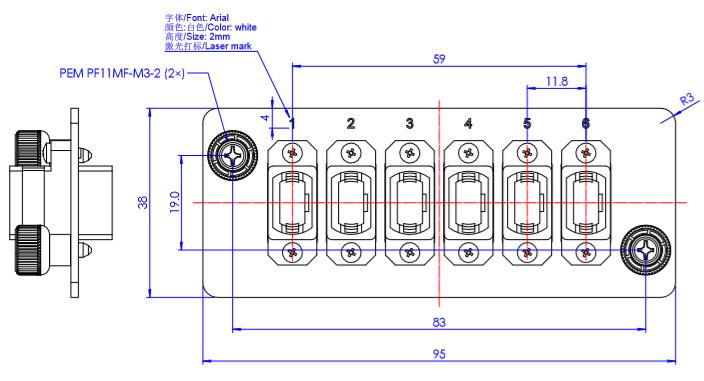

    4. Details Picture



    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    ORC QC Process Flow Chat
    ORC Production Show
    FAQ
    1. Q: How can you test a single mode jumper?
    A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
    2. Q: Are these cables compatible with a variety of modules?
    A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
    3. Q: What's your average lead time?
    A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
    4. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
