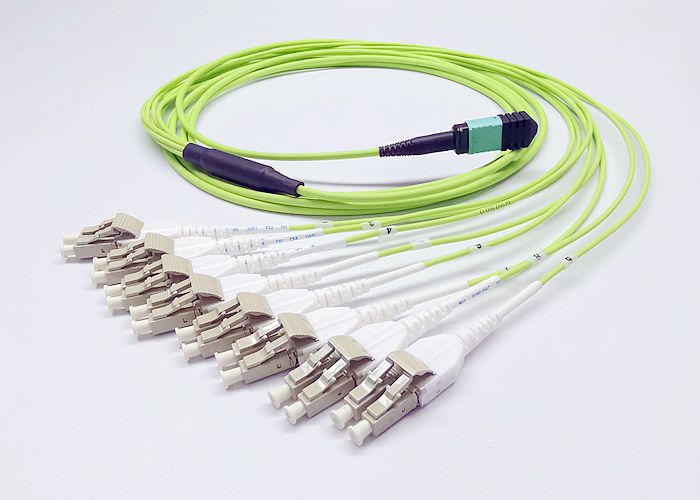

16 core MPO low loss to LC uniboot duplex MPO fanout cable 3.0mm
multimode OM5 LSZH cable
Multifiber, 16 fibers MPO-LC fanout cable assemblies are terminated
with Senko brand MPO male connectors and 8*LC duplex connectors,
which are typically utilized in the MPO/MTP® cassettes, racks or
backbone trunk assemblies with the active equipment ports.
Multimode OM5 fiber optic cables ensure the well transmission of
the light.
Features
◆ Polarity options are TIA style A, B, or C (Method B is standard)
◆ With 12 fiber, 16 fiber, and 24 fiber MPO/MTP® connector standard
◆ Available in Senko, Nissin, US Conec, EZconn, Sanwa, Sancall brand
connector
◆ Available in OS1/2, OM2, OM3-150, OM3-300, OM4 and OM5
◆ Available in FC, LC, SC, ST, MU, E2000 and MPO/MTP®
Application
◆ Jumper Connection
◆ Data Center Cabling
◆ MPO/MTP® cassettes, racks
◆ Telecommunication Network
◆ 40G, 100G and QSFP transceiver
Specification
1. Operating & Storage Temperature
| Parameters | Min | Max | Unit |
| 1 | Operating Temperature | -40 | 70 | °C |
| 2 | Storage Temperature | -40 | 70 | °C |
2. Optical Performance
| Item | Parameters |
| MPO/MTP® Connector | SM(1310nm/1550nm) | MM(850nm) |
| Standard | Low Loss | Standard | Low Loss |
| Insertion Loss | Typical | 0.5dB | 0.2dB | 0.5dB | 0.2dB |
| Maximum | 0.7dB | 0.35dB | 0.7dB | 0.35dB |
| Return Loss | >=60dB for APC | -- |
| >=40dB for PC | >=20dB for PC |
| Male/Female | Male: with Pin; Female: without Pin |
| LC/FC/SC Connector |
| Item | SM | MM |
| 1310nm/1550nm IL(dB) | 1310nm/1550nm RL(dB) | 850nm IL(dB) | 850nm RL(dB) |
| PC | <=0.2 | >=50 | <=0.3 | >=25 |
| APC | <=0.3 | >=60 | N/A | N/A |
3. Geometry Parameters
| MT |
| Measurement | Pass/Fail Limits |
| Parameters | Min | Max |
| | |
| Radius of Curvature | Long Axel | 2000mm | ∞ |
| Short Axel | 50mm | ∞ |
| Angle | Long Axel | -0.2° | 0.2° |
| Short Axel | APC | 7.8° | 8.2° |
| PC | -0.2° | 0.2° |
| Fiber Height | 1000nm | 3000nm |
| Different Fiber Height | N/A | 500nm |
| Adjacent Fiber Height | N/A | 300nm |
| Ferrule Length | 7.9mm | N/A |
| FC/LC/SC UPC |
| Item | Pass/Fail |
| Parameters | Min | Max |
| FC ROC | 10.00mm | 25.00mm |
| LC ROC | 7.00mm | 25.00mm |
| Fiber Height | -100.00nm | 50.00nm |
| Apex Offset | 0.00μm | 50.00μm |
| FC/SC/LC APC |
| Item | Pass/Fail |
| Parameters | Min | Max |
| ROC | 5.0mm | 12.00mm |
| Fiber Height | -100.0nm | 50.0nm |
| Apex Offset | 0.00μm | 50.00μm |
| APC Angle | 7.700deg | 8.300deg |
| Key Error | -0.500deg | 0.500deg |
4. Connector Detail
Product Advantages
◆ We passed many quality system vertification, like ISO, RoHS; and
passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is
15,000 connectors/day and MT product capacity is 3000
connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested
individually in our production line as well as 100% tested by the
QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable
service to each customer.
ORC QC Process Flow Chat
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face
inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP,
SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the
regular products. For the MT products, our capacity is 3000
connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical
drawings.
