    Male To Female MPO Patch Cable LSZH Material Crush Resistance For Communication System

    Ask Lasest Price
    Brand Name : OEM
    Model Number : MPO-MPO-12F-M-F-3.0-OM5-B-1M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 3000 connectors/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    Male To Female MPO Patch Cable LSZH Material Crush Resistance For Communication System

    12F MPO male to MPO female trunk cable assemblies OM5 LSZH patch cable
    Fiber Optic patch cords terminated with MPO/MTP® connectors are specifically designed for Data Center system. MPO/MTP® connectors, using the MT ferrule, can increase the density of 4 to 72 fibers compared to traditional, single-fiber optic connectors.
    A combination of high quality branded components and ORC's manufacturing quality control guarantees products are of the highest standard. State-of-the-art MPO/MTP® manufacturing facilities provide high performance assemblies for the most demanding applications.
    The evolving future protocols of 40G and 100G Ethernet utilise parallel optics. With MPO/MTP® connections in your network, the infrastructure will be unchanged and easily fit into the new network standard topologoies.
    Features
    Different type of optical fiber available(G.652D, G.657, OM1, OM2, OM3 or OM4, OM5)
    Compact LSZH cable standard; OFNP cable also available
    ◆ Compliance with the 40G and 100G protocols
    Compliance with Telcordia GR-1435-CORE Compliant
    High tensile strength and crush resistance
    Application

    ◆ Backbone installation
    ◆ Optical fiber communication system, CATV, LANs and WANs, FTTx
    ◆ 40G and 100G optics system, QSFP module
    ◆ Telecommunication network
    ◆ FTTx, FTTD, FTTB, FTTH networks
    Specification

    1. Operating & Storage Temperature

    ParametersMinMaxUnit
    1Operating Temperature-4070°C
    2Storage Temperature-4070°C

    2. Optical Performance

    Optical Performance
    ItemParameters
    MTP/MPO ConnectorSM (1310nm/1550nm)MM (850nm)
    StandardLow LossStandardLow Loss
    Insertion LossTypical0.50dB0.20dB0.50dB0.20dB
    Maximum0.70dB0.35dB0.70dB0.35dB
    Return Loss≥60dB for APC≥20dB for PC
    ≥40dB for PC--
    Male/FemaleMale: with Pins, Female: without Pins

    3. Geometry Parameters

    MeasurementPass/Fail Limits
    ParametersMinMax
    Radius of CurvatureLong Axel2000nm

    Short Axel50mm

    AngleLong Axel-0.2°0.2°
    Short AxelAPC7.8°8.2°
    PC-0.2°0.2°
    Fiber Height1000nm3000nm
    Different Fiber HeightN/A500nm
    Adjacent Fiber HeightN/A300nm
    Ferrule Length7.9mmN/A

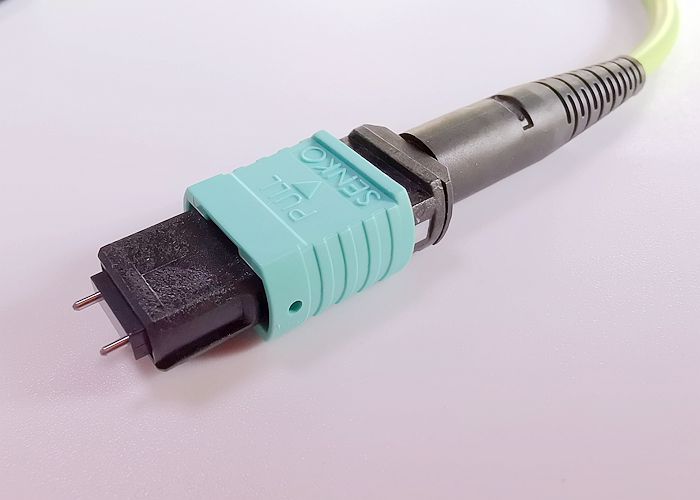

    4. Details Picture




    Standard Package



    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    ORC QC Process Flow Chat
    FAQ
    1. Q: What's the difference between MTP and MPO connector?
    A: First of all, MTP connector is fully compliant with all of the MPO connector. MTP, developed and manufactured by the American connectivity specialist US Conec, is a kind of high performance MPO connector with multiple innovative design. So its cost is higher than MPO connector. But there are still some cost-effective choices, such as Senko, Nissin, EZconn, FIEL brand MPO connectors.
    2. Q: What's your average lead time?
    A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
    3. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
