    MPO Fiber Loopback Adapter , 12F SM Patch Cable Connectors Without Housing

    Ask Lasest Price
    Brand Name : OEM
    Model Number : MPO-loopback-12F-SM
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 3000 connectors/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    MPO Fiber Loopback Adapter , 12F SM Patch Cable Connectors Without Housing

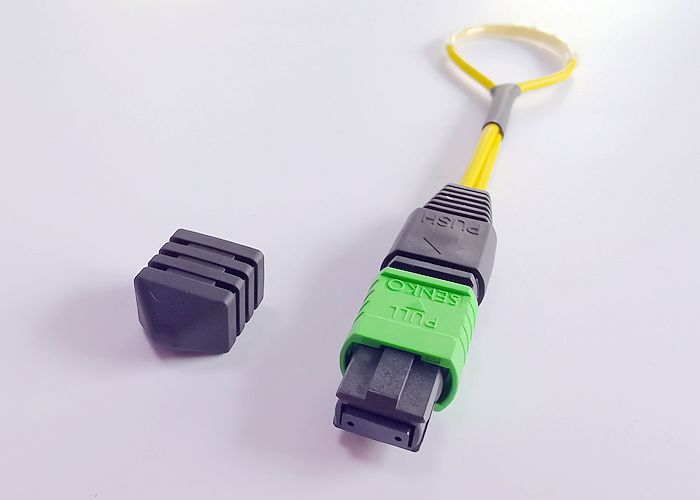

    MPO fiber optic loopback adapter 12F SM MPO patch cord connector without housing
    MPO/MTP® Loopback is used widely within testing environment especially within parallel optics 40 and 100G networks. Devices allow verification and testing of transceivers featuring MPO/MTP® interface - 40G BASED-SR4 QSFP+ or 100G BASE-SR10 CXP/CFP devices. Loopbacks are built to link Transceivers (TX) and Receivers (RX) positions of MPO/MTP® transceivers interfaces. MPO/MTP® loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MPO/MTP® trunks/patch leads.
    Features
    12 or 24 Fiber Ferrule MPO/MTP®
    Female and Male MPO/MTP option of Connectors
    MPO/MTP® Interface - MPO/MTP components feature superior optical and mechanical properties
    Polarity Variants selection
    SM 9/125, MM 50/125
    Application

    ◆ Data Centre Infrastructure
    ◆ Storage Area Network- Fiber Channel
    ◆ Parallel Optics
    ◆ Emerging 40 and 100Gbps Protocols
    ◆ Infiniband
    Specification

    1. Operating & Storage Temperature

    ParametersMinMaxUnit
    1Operating Temperature-4070°C
    2Storage Temperature-4070°C

    2. Optical Performance


    ItemParameters
    MPO/MTP® ConnectorSM(1310nm/1550nm)MM(850nm)
    StandardLow LossStandardLow Loss
    Insertion LossTypical0.5dB0.2dB0.5dB0.2dB
    Maximum0.7dB0.35dB0.7dB0.35dB
    Return Loss>=60dB for APC--
    >=40dB for PC>=20dB for PC
    Male/FemaleMale: with Pin; Female: without Pin

    3. Geometry Parameters


    MT
    MeasurementPass/Fail Limits
    ParametersMinMax
    Radius of CurvatureLong Axel2000mm

    Short Axel50mm

    AngleLong Axel-0.2°0.2°
    Short AxelAPC7.8°8.2°
    PC-0.2°0.2°
    Fiber Height1000nm3000nm
    Different Fiber HeightN/A500nm
    Adjacent Fiber HeightN/A300nm
    Ferrule Length7.9mmN/A

    4. Connector Detail



    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    ORC QC Process Flow Chat
    FAQ
    1. Q: How can you test a single mode jumper?
    A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
    2. Q: Are these cables compatible with a variety of modules?
    A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
    3. Q: What's your average lead time?
    A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
    4. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
