    MPO / APC - MPO / APC Patch Cable High Density Multi - Fibers Solutions

    MPO / APC - MPO / APC Patch Cable High Density Multi - Fibers Solutions
    MPO-MPO Type B 8 Fiber patch cable usually is used for the data exchanging between two 40G fiber optic transceivers. The standard insertion loss is 0.5dB for SM connector. As for 8F MPO ferrule, we usually keep the middle 4F of the 12F ferrule blank or fill the 4F with useless fibers.
    Features
    ◆ 100% polarity checking under the industrial camera
    ◆ 100% polarity checking under the polarity test instrument
    ◆ 100% 3D geometry test under the interferometer instrument
    ◆ Comprehensive OEM service, such as customized package, label, or FO cable printing
    ◆ IEC, ISO9001, SGS, RoHS compliant
    Application
    ◆ Data center cabling
    ◆ Data communication network
    ◆ Storage area networking fiber channel
    ◆ High density architectures
    Optical Performance
    Optical Performance
    ItemParameters
    MTP/MPO ConnectorSM (1310nm/1550nm)MM (850nm)
    StandardLow LossStandardLow Loss
    Insertion LossTypical0.50dB0.20dB0.50dB0.20dB
    Maximum0.70dB0.35dB0.70dB0.35dB
    Return Loss≥60dB for APC≥20dB for PC
    ≥40dB for PC--
    Male/FemaleMale: with Pins, Female: without Pins

    Geometry Parameters


    MeasurementPass/Fail Limits
    ParametersMinMax
    Radius of CurvatureLong Axel2000nm
    Short Axel50mm
    AngleLong Axel-0.2°0.2°
    Short AxelAPC7.8°8.2°
    PC-0.2°0.2°
    Fiber Height1000nm3000nm
    Different Fiber HeightN/A500nm
    Adjacent Fiber HeightN/A300nm
    Ferrule Length7.9mmN/A

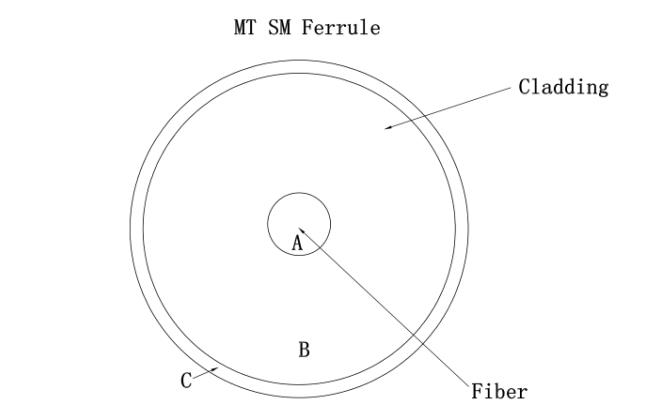

    SM MT Ferrule Endface Inspection Standard
    Zone Diameter (μm)
    ZoneZone SizeAllowable Defects
    Zone A0μm-25μmZero scratch, defect or contamination
    Zone B25μm-120μm

    Black/White Point≤3μm, number≤5

    White Scratch Width≤2μm, number≤5

    Black Sratch and Clip are not allowed

    Zone C120μm-130μmBlack/White Point>10μm are not allowed

    Every ORC MT endface will be inspected under the 400X as well as 200X magnification fiber endface inspector. 400X magnification will help the staff see the defects more clearly, while 200X magnification enables staff inspect the endface of the ferrule more widely.
