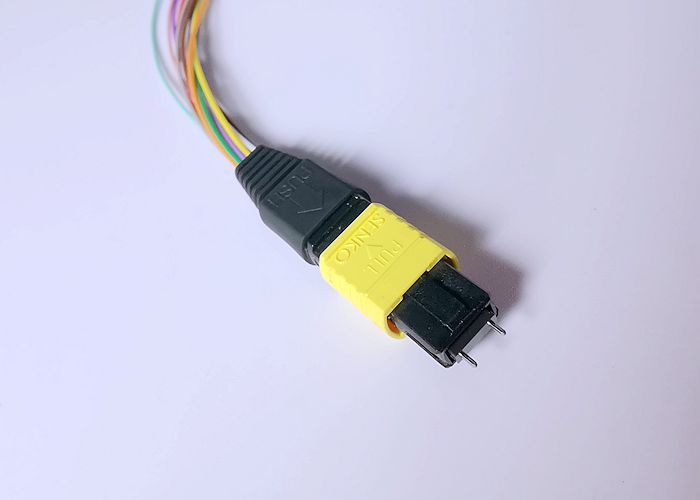

G657A1 MPO Breakout Cable
12F MPO male to 12F LC/APC MPO Breakout / harness cable 0.9mm SM
G657A1 LSZH cable
0.9mm singlemode 12F MPO harness is mainly installed in the MPO
fiber optic cassette, panels or backbone trunk assemblies with the
active equipment ports, saving costly data centre rack space and
easing fibre management. Senko brand Low Loss MPO connector piece
parts and ferrule ensure the good optical performance, and at the
same time it is cost-effective. Every MPO connector of ORC is 100%
tested under the 3D interferometer equipment with traceable data.
Features
◆ Polarity options are TIA style A, B, or C (Method B is standard)
◆ Fan-out fibers from MPO/MTP connectors into individual simplex or
duplex
◆ Customized for length, staggering, connector type, breakout
style, fiber count, and labeling
◆ Available in OS1/2, OM2, OM3 and OM4
◆ Available in FC,LC, SC, ST, MU, and MTP
Application
◆ 40/100G Optical Modules Connectivity
◆ Data Center Cabling
◆ Cassettes And Rack mount
◆ Telecommunication Network
Specification
1. Operating & Storage Temperature
| Parameters | Min | Max | Unit |
1 | Operating Temperature | -40 | 70 | °C |
2 | Storage Temperature | -40 | 70 | °C |
2. Optical Performance
Item | Parameters |
MPO/MTP® Connector | SM(1310nm/1550nm) | MM(850nm) |
Standard | Low Loss | Standard | Low Loss |
Insertion Loss | Typical | 0.5dB | 0.2dB | 0.5dB | 0.2dB |
Maximum | 0.7dB | 0.35dB | 0.7dB | 0.35dB |
Return Loss | >=60dB for APC | -- |
>=40dB for PC | >=20dB for PC |
Male/Female | Male: with Pin; Female: without Pin |
LC/FC/SC Connector |
Item | SM | MM |
| 1310nm/1550nm IL(dB) | 1310nm/1550nm RL(dB) | 850nm IL(dB) | 850nm RL(dB) |
PC | <=0.2 | >=50 | <=0.3 | >=25 |
APC | <=0.3 | >=60 | N/A | N/A |
3. Geometry Parameters
MT |
Measurement | Pass/Fail Limits |
Parameters | Min | Max |
|
|
|
Radius of Curvature | Long Axel | 2000mm | ∞ |
Short Axel | 50mm | ∞ |
Angle | Long Axel | -0.2° | 0.2° |
Short Axel | APC | 7.8° | 8.2° |
PC | -0.2° | 0.2° |
Fiber Height | 1000nm | 3000nm |
Different Fiber Height | N/A | 500nm |
Adjacent Fiber Height | N/A | 300nm |
Ferrule Length | 7.9mm | N/A |
FC/LC/SC UPC |
Item | Pass/Fail |
Parameters | Min | Max |
FC ROC | 10.00mm | 25.00mm |
LC ROC | 7.00mm | 25.00mm |
Fiber Height | -100.00nm | 50.00nm |
Apex Offset | 0.00μm | 50.00μm |
FC/SC/LC APC |
Item | Pass/Fail |
Parameters | Min | Max |
ROC | 5.0mm | 12.00mm |
Fiber Height | -100.0nm | 50.0nm |
Apex Offset | 0.00μm | 50.00μm |
APC Angle | 7.700deg | 8.300deg |
Key Error | -0.500deg | 0.500deg |
4. Connector Detail
Product Advantages
◆ We passed many quality system vertification, like ISO, RoHS; and
passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity
is 15,000 connectors/day and MT product capacity is 3000
connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested
individually in our production line as well as 100% tested by the
QC department.
◆ Our service is qualified. We insist on responsive and
knowledgeable service to each customer.
ORC QC Process Flow Chat
ORC Production Show
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face
inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP,
SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the
regular products. For the MT products, our capacity is 3000
connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical
drawings.
