    Fiber optical patch cord SC/UPC - LC/UPC simplex 4.0mm single mode G657A1 LSZH cable

    Ask Lasest Price
    Brand Name : OEM
    Model Number : SC/UPC-LC/UPC-1F-4.0-1M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 15000 connectors/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    Fiber optical patch cord SC/UPC - LC/UPC simplex 4.0mm single mode G657A1 LSZH cable

    Fiber optical patch cord SC/UPC - LC/UPC simplex 4.0mm single mode G657A1 LSZH cable

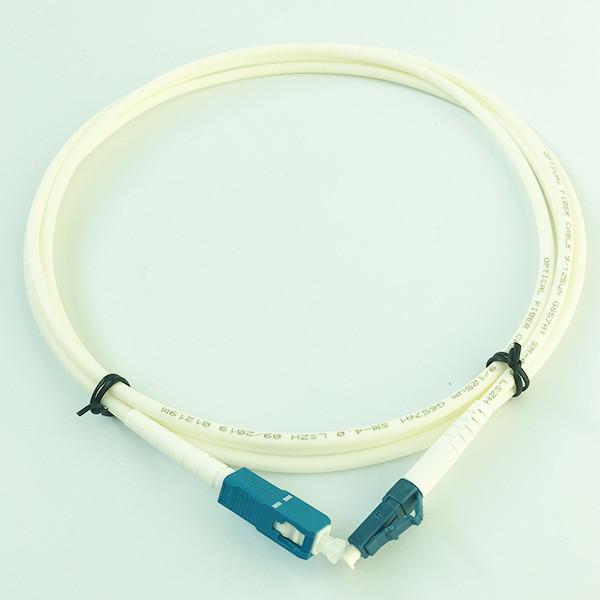

    SC-LC simplex SM 4.0mm LSZH G657A standard patch cord is assembled with white color optical fiber cable, which is more suitable for the home-use. White color FO cable is easier to blend in the most of the house background.
    Features
    Comprehensive OEM service, from FO cable mark printing to labels and package
    Strong ODM ability under the supporting of the R&D team
    Low insertion loss
    Perfect reliability. Performing well when environment temperature changing or outer tensile changing
    Application

    Optical fiber testing equipment such as IL/RL testing instrument
    Fiber optical switch, ONU, media converter, transceiver
    LAN and WAN
    Data center patch panel, rack
    Telecommunication networks
    ◆ Fiber optic terminal box, cabinet
    Specification

    1. Operating & Storage Temperature

    ParametersMinMaxUnit
    1Operating Temperature-4085°C
    2Storage Temperature-4085°C

    2. Optical Performance

    ItemSMMM
    1310nm/1550nm IL(dB)1310nm/1550nm RL(dB)850nm IL(dB)850nm RL(dB)
    PC<=0.20>=50<=0.30>=25
    APC<=0.30>=60N/AN/A


    3. Geometry Parameters

    UPC
    ItemPass/Fail
    ParametersMinMax
    ROC7.0mm25.00mm
    Fiber Height-100.0nm50.0nm
    Apex Offset0.00μm50.00μm

    APC
    ItemPass/Fail
    ParametersMinMax
    ROC5.0mm12.00mm
    Fiber Height-100.0nm50.0nm
    Apex Offset0.00μm50.00μm
    APC Angle7.700deg8.300deg
    Key Error-0.500deg0.500deg

    Standard Package



    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    ORC QC Process Flow Chat
    FAQ
    1. Q: How can you test a single mode jumper?
    A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
    2. Q: Are these cables compatible with a variety of modules?
    A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
    3. Q: What's your average lead time?
    A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
    4. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
