    IP68 SC Adapter Harsh Environment Wire Dust Cap For Outdoor Terminal Box

    Ask Lasest Price
    Brand Name : OEM
    Model Number : ORC-IP-TAP/SC AP
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 15000 connectors/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    IP68 SC Adapter Harsh Environment Wire Dust Cap For Outdoor Terminal Box

    Harsh environment cable assemblies IP68 SC adapter with dust cap for outdoor terminal box
    SuperTap® IP68 SC simplex adapter, researched and developed individually by ORC has abtained the patent from the authority. The adapter is perfectly compatible with Corning OptiTap cable assembly and ORC's FiberHub® waterproof outdoor terminal box. The waterproof series solutions provide you with the robust protection for fiber optic interconnection, which enables the applications in moisture, liquid and dust environment, for example, fiber cabling deployment in FTTA, industrial network, base stations, railway systems.
    Features
    ◆ Light weight, waterproof, dustproof, moisture proof, Metal hard housing
    Provides moisture and dust protection for use in harsh industrial environment
    IP68 protection, salt-mist proof, humidity proof, dust proof
    Broad temperature range (-40 to +85℃) is ideal for indoor or outdoor applications
    Mark on dust cap can help people who cannot distinguish between colors to operate
    ◆ Easy Operation, reliable and cost-effective installation
    ◆ Broad temperature range and wide range of indoor and outdoor cables
    Application
    For connection between distribution box and RRH
    Deployment in Remote Radio Head cell tower applications
    FTTH & FTTA
    ◆ Oil and Gas Industries
    ◆ Mining
    ◆ Standard interface specified in 3G,4G
    Specification
    StandardsComply to GR-3120, GR3152, IEC 61753-1, IEC 61754-4
    Insertion Loss(SC&LC)Max. 0.5dB, Mean 0.15dB(8° angled)
    Insertion Loss(MPO)Max. 0.6dB, Mean 0.35dB(8° angled)
    Return Loss(SC&LC)Min 55dB(8° angled)
    Return Loss(MPOMin 55dB(8° angled)
    Operation Temperature-40 to 85℃
    Storage Temperature-40 to 85℃
    Cable Dimension5.0mm, 7.0mm or 4.5*7.0mm flat
    Dust Cap Max. Pulling Force100lb
    Water ResistanceIP68

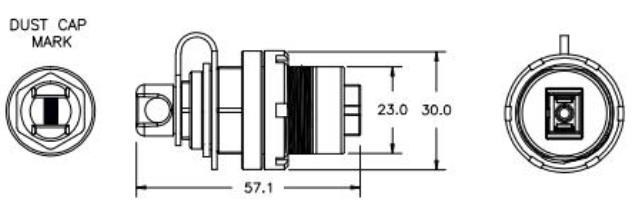

    4. Drawing and Details Picture




    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    ORC QC Process Flow Chat
    FAQ
    1. Q: Can you offer the test report?
    A: Of course, we can show you the test report by ourselves as well as the third party test report. Please contact our sales for it.
    2. Q: What cable types are available for the connector?
    A: The cables can be round or flat shape, armored or non-armored. The diameter range for round cable is from 7.0mm to 14.0mm, and for flat cable is 4.5mm*8mm.
    3. Q: What's your average lead time?
    A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
    4. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
