    4F ODVA LC - LC Harsh Environment Cable Assembly Armored Waterproof For Base Station

    Ask Lasest Price
    Brand Name : OEM
    Model Number : ORC-IP-ODVA/LC-4F
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 15000 connectors/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    4F ODVA LC - LC Harsh Environment Cable Assembly Armored Waterproof For Base Station

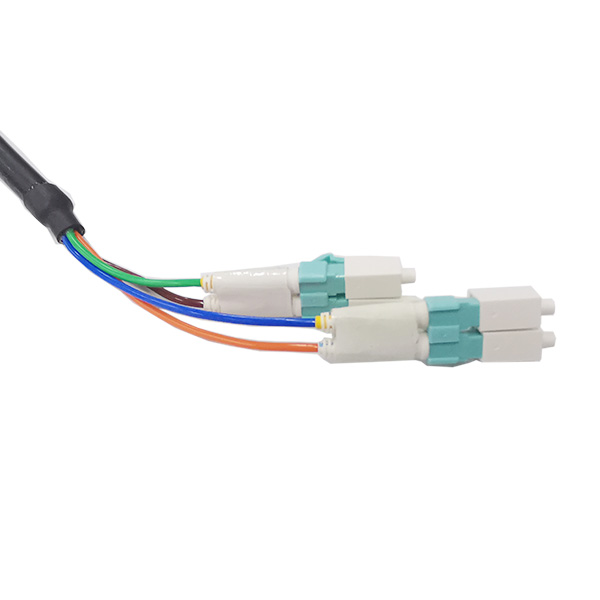

    4F ODVA LC - LC armored waterproof harsh environment fiber optic cable assembly for base station
    ODVA type outdoor fiber optic patch cord, assembled with standard 2 pcs LC duplex connector and protected by ODVA waterproof housing, supports virtually any extreme environments suitable for FTTA, base stations, transportation, railway systems, and industrial networks.
    Features
    ◆ IP68 water and dust protection
    Provides superior weather resistance for FTTA and other outdoor applications
    100% optically tested to ensure quality performance assemblies
    Broad temperature range (-40 to +85℃) is ideal for indoor or outdoor applications
    150N(33 lbs) cable retention
    ◆ Accepts 4.8mm to 7.0mm cable diameters
    ◆ Can be used with many common connector styles including optical SC and LC, Cat 5, 5e, 6, 7, power and others
    Application

    LTE RRH/RRU and Base Stations
    Wimax Radio and Base Stations
    FTTH & FTTA
    ◆ Oil and Gas Industries
    ◆ Mining
    ◆ Standard interface specified in 3G,4G
    1. Specification
    ParametersSpecification
    Pull Force: 150N(33 Pounds)IEC 61300-2-4
    VibrationIEC 61300-2-1
    Salt MistIEC 61300-2-26
    ImpactIEC 61300-2-12
    TemperatureIEC 61300-2-22
    HumidityIEC 61300-2-22

    2. Geometry Parameters


    UPC
    ItemPass/Fail
    ParametersMinMax
    ROC7.0mm25.00mm
    Fiber Height-100.0nm50.0nm
    Apex Offset0.00μm50.00μm

    APC
    ItemPass/Fail
    ParametersMinMax
    ROC5.0mm12.00mm
    Fiber Height-100.0nm50.0nm
    Apex Offset0.00μm50.00μm
    APC Angle7.700deg8.300deg
    Key Error-0.500deg0.500deg


    3. Drawing and Details Picture



    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    ORC QC Process Flow Chat
    FAQ
    1. Q: Can you offer the test report?
    A: Of course, we can show you the test report by ourselves as well as the third party test report. Please contact our sales for it.
    2. Q: What cable types are available for the connector?
    A: The cables can be round or flat shape, armored or non-armored. The diameter range for round cable is from 7.0mm to 14.0mm, and for flat cable is 4.5mm*8mm.
    3. Q: What's your average lead time?
    A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
    4. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
