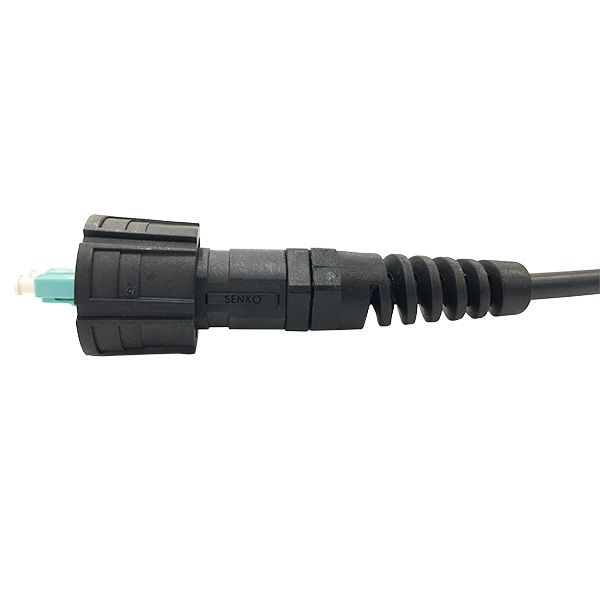

    Base Stations Lc To Lc Connector , 2 Fiber ODVA IP Lc Duplex Connector

    Ask Lasest Price
    Brand Name : OEM
    Model Number : ORC-IP-ODVA/LCD
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 15000 connectors/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    Base Stations Lc To Lc Connector , 2 Fiber ODVA IP Lc Duplex Connector

    Base stations harsh environment ODVA IP LC connector to LC duplex connector
    ODVA type outdoor fiber optic patch cord, assembled with standard LC duplex connector and protected by ODVA waterproof housing, supports virtually any extreme environments suitable for FTTA, base stations, transportation, railway systems, and industrial networks.
    Features
    ◆ IP68 water and dust protection
    Provides superior weather resistance for FTTA and other outdoor applications
    100% optically tested to ensure quality performance assemblies
    Broad temperature range (-40 to +85℃) is ideal for indoor or outdoor applications
    150N(33 lbs) cable retention
    ◆ Accepts 4.8mm to 7.0mm cable diameters
    ◆ Can be used with many common connector styles including optical SC and LC, Cat 5, 5e, 6, 7, power and others
    Application

    LTE RRH/RRU and Base Stations
    Wimax Radio and Base Stations
    FTTH & FTTA
    ◆ Oil and Gas Industries
    ◆ Mining
    ◆ Standard interface specified in 3G,4G
    1. Specification
    ParametersSpecification
    Pull Force: 150N(33 Pounds)IEC 61300-2-4
    VibrationIEC 61300-2-1
    Salt MistIEC 61300-2-26
    ImpactIEC 61300-2-12
    TemperatureIEC 61300-2-22
    HumidityIEC 61300-2-22

    2. Geometry Parameters


    UPC
    ItemPass/Fail
    ParametersMinMax
    ROC7.0mm25.00mm
    Fiber Height-100.0nm50.0nm
    Apex Offset0.00μm50.00μm

    APC
    ItemPass/Fail
    ParametersMinMax
    ROC5.0mm12.00mm
    Fiber Height-100.0nm50.0nm
    Apex Offset0.00μm50.00μm
    APC Angle7.700deg8.300deg
    Key Error-0.500deg0.500deg


    3. Drawing and Details Picture



    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    ORC QC Process Flow Chat
    FAQ
    1. Q: Can you offer the test report?
    A: Of course, we can show you the test report by ourselves as well as the third party test report. Please contact our sales for it.
    2. Q: What cable types are available for the connector?
    A: The cables can be round or flat shape, armored or non-armored. The diameter range for round cable is from 7.0mm to 14.0mm, and for flat cable is 4.5mm*8mm.
    3. Q: What's your average lead time?
    A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
    4. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
