    Waterproof Terminal Box , 12 Ports Fiber Optic Distribution Box For Outdoor

    Ask Lasest Price
    Brand Name : OEM
    Model Number : ORC-IP-HUB-12
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 15000 connectors/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    Waterproof Terminal Box , 12 Ports Fiber Optic Distribution Box For Outdoor

    Waterproof Terminal Box , 12 Ports Fiber Optic Distribution Box For Outdoor
    Compared with traditional products, the new economic fiber distribution box is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. The terminal box is not only used in FTTH field, but also used in FTTA or other harsh environment.
    Features
    ◆ High compatibility: can be assembled OptiTap, Mini SC, ODC, PTLC, PTMPO or other power adapter
    ◆ Factory-sealed or field assembly
    ◆ Strong enough: working under 1200N pulling force long term
    ◆ Available with PLC or splice sleeve for fiber divide
    ◆ Wall-mounting, aerial installation or holding pole installation
    ◆ Decreased angle surface and height make sure no connector interfering when operating
    ◆ Meet IEC 61753-1 standard
    ◆ Cost effective: save 40% operating time
    Application

    Trunk cable connecting
    Prospecting or military communication
    FTTH & FTTA
    ◆ Oil and Gas Industries
    ◆ Mining
    ◆ Standard interface specified in 3G,4G
    Specification
    Dimension L*W*H365*135*90mm(without cover) 374*143*120mm(with cover)
    Ingress protectionIP68
    Cable strength memberArmoured or Non-armored
    Cable typeHybrid or non-hybrid
    Input round cable OD5.0mm to 14mm
    Input flat cable OD4.6mm to 8.9mm
    Cable crush resistance200N/cm long term
    Tensile strength1200N
    UV resistanceISO 4892-3
    Fire protection ratingUL94-V0
    Number of PLC1 or 2 pcs

    3. Geometry Parameters


    UPC
    ItemPass/Fail
    ParametersMinMax
    ROC7.0mm25.00mm
    Fiber Height-100.0nm50.0nm
    Apex Offset0.00μm50.00μm

    APC
    ItemPass/Fail
    ParametersMinMax
    ROC5.0mm12.00mm
    Fiber Height-100.0nm50.0nm
    Apex Offset0.00μm50.00μm
    APC Angle7.700deg8.300deg
    Key Error-0.500deg0.500deg

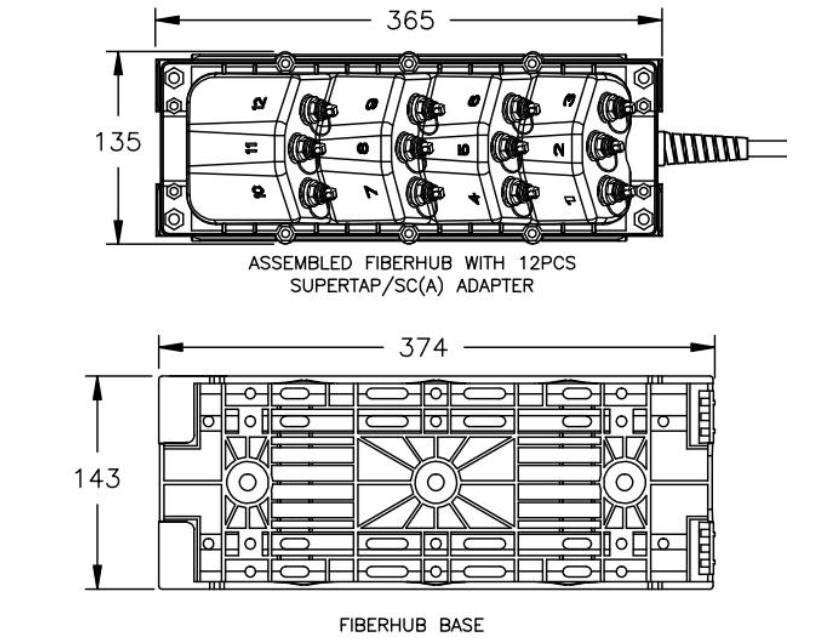

    4. Drawing and Details Picture



    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    ORC QC Process Flow Chat
    FAQ
    1. Q: Can you offer the test report?
    A: Of course, we can show you the test report by ourselves as well as the third party test report. Please contact our sales for it.
    2. Q: What cable types are available for the connector?
    A: The cables can be round or flat shape, armored or non-armored. The diameter range for round cable is from 7.0mm to 14.0mm, and for flat cable is 4.5mm*8mm.
    3. Q: What's your average lead time?
    A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
    4. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
