    LGX Box Type Fiber Optic PLC Splitter , 1x8 Plc Splitter With SC / UPC Adapters

    Ask Lasest Price
    Brand Name : OEM
    Model Number : PLCL-1*8-0.9-SCU-1M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1700 pcs/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    LGX Box Type Fiber Optic PLC Splitter , 1x8 Plc Splitter With SC / UPC Adapters

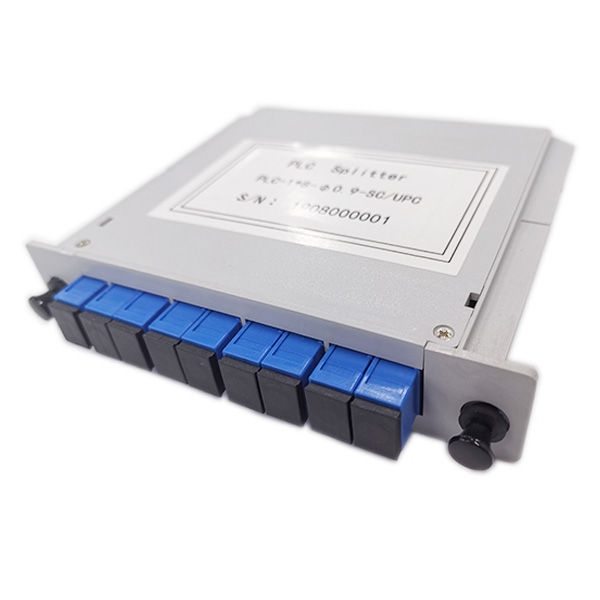

    Fiber PLC splitter 1x8 LGX type fiber optic splitter with SC / UPC adapters
    LGX style Planar Light wave Circuit (PLC) Splitter utilizing the PLC photonic chip, allows light signal received and distributed at the same time. The LGX box 1:8 splitter can load the mini module 1:8 PLC and is suitable for different FTTH terminal boxes. The LGX box type splitter usually installed with SC adapters.
    Features
    Wide Operating Temperature: From -40℃ to 85℃
    Wide Operating Wavelength: From 1260nm to 1650nm
    Light weight, plastic material
    ◆ Modular design, easy for installation and management
    Good channel-to-channel uniformity
    Application

    Optical Signal Distribution
    ◆ Optical LAN, Metro, WAN networks
    CATV Links
    FTTH terminal box
    PON Networks
    Performance Specifications
    ParametersSpecificationsUnitNotes
    Channel Number1X8

    Comply with RoHS requirement


    Insertion Loss tested without connector

    Operation Wavelength1260-1650nm
    Insertion Loss@1310/1550nm≤10.6dB
    PDL@1310/1550nm≤0.3dB
    Uniformity@1310/1550nm≤0.8dB
    Return Loss@1310/1550nm≥50dB
    Directivity@1310/1550nm≥55dB
    Fiber TypeG657A1 or other types according to customer demand
    Length1.0M
    Connector TypeNone or SC/LC/FC/ST
    Package Dimension(L)x(W)x(H)mm
    Operating Temperature-40-+85
    Storage Temperature-40-+85


    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    ORC QC Process Flow Chat
    FAQ
    1. Q: What's your average lead time?
    A: Our lead time is controlled within 5 working days for the regular products.
    2. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
