Features
◆ Provides moisture and dust protection for use in harsh industrial
environment
◆ IP68 protection, salt-mist proof, humidity proof, dust proof
◆ Drastically reduces field splicing with a predetermined loss at
each waterproof tether access point
◆ Reduce installation time by as much as 50% per network access point
◆ 100% optically tested to ensure quality performance assemblies
◆ Available in single mode and multimode styles to work with any
common fiber type
◆ Broad temperature range (-40 to +85℃) is ideal for indoor or
outdoor applications
◆ Mark on dust cap can help people who cannot distinguish between
colors to operate
Application
◆ For connection between distribution box and RRH
◆ Deployment in Remote Radio Head cell tower applications
◆ FTTH & FTTA
Specification
| Standards | Comply to GR-3120, GR3152, IEC 61753-1, IEC 61754-4 |
| Insertion Loss(SC&LC) | Max. 0.5dB, Mean 0.15dB(8° angled) |
| Insertion Loss(MPO) | Max. 0.6dB, Mean 0.35dB(8° angled) |
| Return Loss(SC&LC) | Min 55dB(8° angled) |
| Return Loss(MPO | Min 55dB(8° angled) |
| Operation Temperature | -40 to 85℃ |
| Storage Temperature | -40 to 85℃ |
| Cable Dimension | 5.0mm, 7.0mm or 4.5*7.0mm flat |
| Dust Cap Max. Pulling Force | 100lb |
| Water Resistance | IP68 |
3. Geometry Parameters
| UPC |
| Item | Pass/Fail |
| Parameters | Min | Max |
| ROC | 7.0mm | 25.00mm |
| Fiber Height | -100.0nm | 50.0nm |
| Apex Offset | 0.00μm | 50.00μm |
| APC |
| Item | Pass/Fail |
| Parameters | Min | Max |
| ROC | 5.0mm | 12.00mm |
| Fiber Height | -100.0nm | 50.0nm |
| Apex Offset | 0.00μm | 50.00μm |
| APC Angle | 7.700deg | 8.300deg |
| Key Error | -0.500deg | 0.500deg |

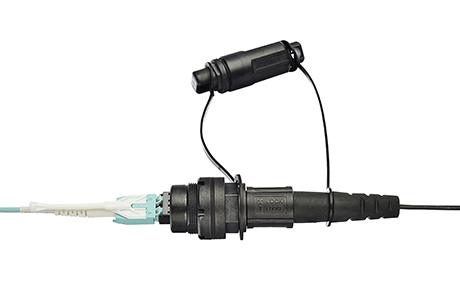

4. Details Picture
Product Advantages
◆ We passed many quality system vertification, like ISO, RoHS; and
passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is
15,000 connectors/day and MT product capacity is 3000
connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested
individually in our production line as well as 100% tested by the
QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable
service to each customer.
ORC QC Process Flow Chat
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face
inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP,
SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the
regular products. For the MT products, our capacity is 3000
connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical
drawings.
