Features
◆ Standard and Elite version MT ferrule available
◆ 4 cores, 8 cores, 12 cores, 16 cores and 24 cores MPO/MTP®
connector available

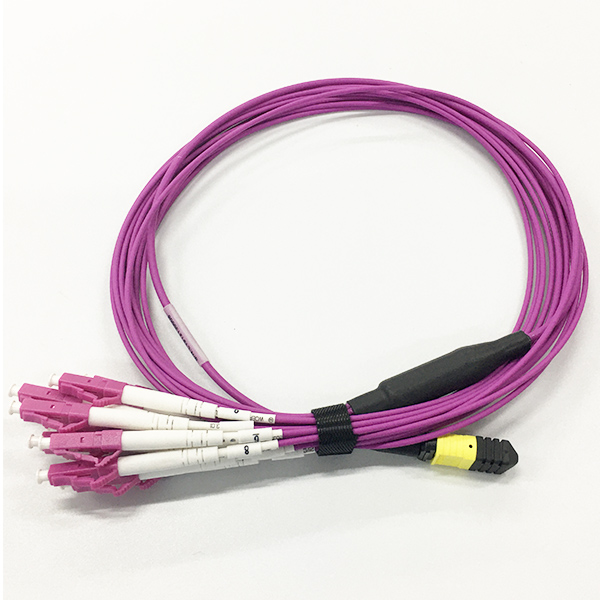

◆ Small factor breakout module from MPO to LC or SC legs 2.0mm SX,
DX or Uniboot
◆ Comply with TIAFOCIS5/604-5, Bellcore GR-1435
◆ Precise guide PIN ensuring the accurate matching
Application
◆ Data Centers, Co-location DC
◆ Coordinate with MPO/MTP® adapter plates
◆ MPO cassettes, racks
◆ Telecommunication networks
◆ LAN or campus wide network
Specification
1. Operating & Storage Temperature
| Parameters | Min | Max | Unit |
1 | Operating Temperature | -40 | 70 | °C |
2 | Storage Temperature | -40 | 70 | °C |
2. Optical Performance
Item | Parameters |
MPO/MTP® Connector | SM(1310nm/1550nm) | MM(850nm) |
Standard | Low Loss | Standard | Low Loss |
Insertion Loss | Typical | 0.5dB | 0.2dB | 0.5dB | 0.2dB |
Maximum | 0.7dB | 0.35dB | 0.7dB | 0.35dB |
Return Loss | >=60dB for APC | -- |
>=40dB for PC | >=20dB for PC |
Male/Female | Male: with Pin; Female: without Pin |
LC/FC/SC Connector |
Item | SM | MM |
| 1310nm/1550nm IL(dB) | 1310nm/1550nm RL(dB) | 850nm IL(dB) | 850nm RL(dB) |
PC | <=0.2 | >=50 | <=0.3 | >=25 |
APC | <=0.3 | >=60 | N/A | N/A |
3. Geometry Parameters
MT |
Measurement | Pass/Fail Limits |
Parameters | Min | Max |
|
|
|
Radius of Curvature | Long Axel | 2000mm | ∞ |
Short Axel | 50mm | ∞ |
Angle | Long Axel | -0.2° | 0.2° |
Short Axel | APC | 7.8° | 8.2° |
PC | -0.2° | 0.2° |
Fiber Height | 1000nm | 3000nm |
Different Fiber Height | N/A | 500nm |
Adjacent Fiber Height | N/A | 300nm |
Ferrule Length | 7.9mm | N/A |
FC/LC/SC UPC |
Item | Pass/Fail |
Parameters | Min | Max |
FC ROC | 10.00mm | 25.00mm |
LC ROC | 7.00mm | 25.00mm |
Fiber Height | -100.00nm | 50.00nm |
Apex Offset | 0.00μm | 50.00μm |
FC/SC/LC APC |
Item | Pass/Fail |
Parameters | Min | Max |
ROC | 5.0mm | 12.00mm |
Fiber Height | -100.0nm | 50.0nm |
Apex Offset | 0.00μm | 50.00μm |
APC Angle | 7.700deg | 8.300deg |
Key Error | -0.500deg | 0.500deg |
4. Connector Detail
Product Advantages
◆ We passed many quality system vertification, like ISO, RoHS; and
passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity
is 15,000 connectors/day and MT product capacity is 3000
connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested
individually in our production line as well as 100% tested by the
QC department.
◆ Our service is qualified. We insist on responsive and
knowledgeable service to each customer.
ORC QC Process Flow Chat
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face
inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP,
SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the
regular products. For the MT products, our capacity is 3000
connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical
drawings.
