12.7mm dual jacket FTTA outdoor cable , 24F G652D PE material black color UV retardant

    Buy cheap 12.7mm dual jacket FTTA outdoor cable , 24F G652D PE material black color UV retardant from wholesalers

    Buy cheap 12.7mm dual jacket FTTA outdoor cable , 24F G652D PE material black color UV retardant from wholesalers
    • Buy cheap 12.7mm dual jacket FTTA outdoor cable , 24F G652D PE material black color UV retardant from wholesalers

    12.7mm dual jacket FTTA outdoor cable , 24F G652D PE material black color UV retardant

    Ask Lasest Price
    Brand Name : OEM
    Model Number : ORCC008
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    12.7mm dual jacket FTTA outdoor cable , 24F G652D PE material black color UV retardant

    12.7mm dual jacket FTTA outdoor cable , 24F G652D PE material black color UV retardant

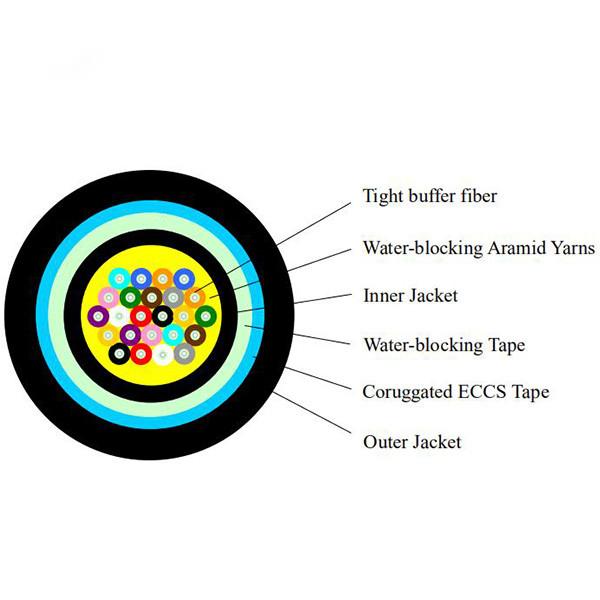

    The dual-jacketed multi-fiber FTTA outdoor fiber optic cable, compared with single-jacketed cable has better mechanical characteristics. It is suitable for the long distance fiber optic cable assemblies, such as FTTA waterproof patch cord and CPRI patch cord.
    Features
    High UV resistance of the cable sheaths
    Excellent water-proof performance with water-blocking aramid yarn and tape
    Low attenuation
    ◆ Very good temperature performance
    Small bending radius
    ◆ Meet various requirements of market and clients
    Application

    Outdoor and harsh environments applications
    ◆ Remote radio head
    Cell site
    Distributed antenna system
    Distribution system cable
    ◆ Used in wireless base station(BS) horizontal and vertical cabling
    Cable Parameters
    ItemsSpecifications
    Fiber TypeG652D/G657A1/G657A2
    Fiber Count2481224
    BufferDimension0.9mm±0.05mm
    MaterialLSZH or Nylon 12
    Strength MemberWater-blocking Aramid Yarns
    Inner JacketDimension4.8mm±0.2mm5.2mm±0.2mm6.0mm±0.2mm6.5mmmm±0.2mm8.5mm±0.2mm
    MaterialLSZH (UV retardant)
    ColorBlack
    Outer JacketDimension9.0mm±0.3mm9.4mm±0.3mm10.2mm±0.3mm10.7mm±0.3mm12.7mm±0.3mm
    MaterialPE or LSZH (UV retardant)
    ColorBlack

    Options
    ◆ Fiber type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode cable, or other types of fiber;
    ◆ Jacket material: environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant polyolefin(LSZH), environmental halogen flame retardant polyolefin(ZRPO), environmental thermoplastic polyurethane(TPU), or other contracted material;
    ◆ Jacket color: (including color of fiber) meets the requirement of relevant standard, or other contracted color;
    ◆ Cable dimension: the nominal cable dimension, or other contracted dimension;

    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    ORC QC Process Flow Chat
    FAQ
    1. Q: What's your terms of payment?
    A: T/T 30% in advance, and rest 70% before delivery. When we reach deeper cooperation, we could support a payment period after authentication.
    2. Q: What's your average lead time?
    A: Our lead time is controlled within 2-5 working days for the regular products.
    3. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
