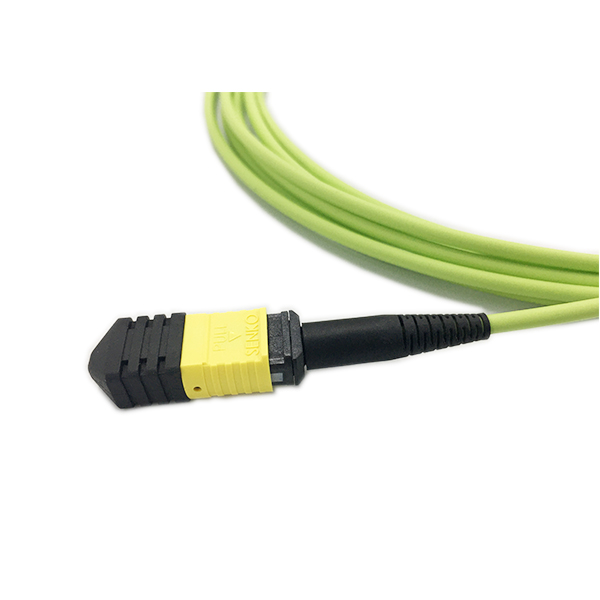

    OM5 24 Core Mpo To Mpo Cable , Optical Fiber Patch Cord Low Loss Lime Green OFNR

    Ask Lasest Price
    Brand Name : OEM
    Model Number : MPO-MPO-24F-F-3.0-B-3M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 150,000 connectors/month
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    OM5 24 Core Mpo To Mpo Cable , Optical Fiber Patch Cord Low Loss Lime Green OFNR

    OM5 24CORE MPO-MPO TRUNK CABLE LOW LOSS LIME GREEN OFNR
    The working wavelength of OM5 patch cord is 850nm/1300nm. What's more, the transmission capacity of an OM5 optical fiber increases four times, compared with OM1, OM2, OM3 and OM4. Because a single OM5 fiber has 4 channels but OM1 to OM4 only has 1 channel. This kind of advantage has decreased the network cabling cost to a large extent.
    Features
    ◆ High accuracy MPO/MTP® ferrule
    ◆ Support OEM service for fiber optical cables and package
    ◆ Comply with IEC61754-7, YD/T1272.5
    ◆ Original Senko brand connector and also supply original Nissin, US conec, ACON MPO/MTP® connectors
    ◆ Wide employment of high density infrastructure
    Application
    ◆ Fiber optic communication networks
    ◆ Realizing the building of 40G and 100G network
    ◆ CATV, LAN, WAN, test and measurement
    ◆ Fiber optical test equipment
    ◆ FTTx high-density cabling system
    Specification

    1. Operating & Storage Temperature


    ParametersMinMaxUnit
    1Operating Temperature-4070°C
    2Storage Temperature-4070°C

    2. Optical Performance


    Optical Performance
    ItemParameters
    MTP/MPO ConnectorSM (1310nm/1550nm)MM (850nm)
    StandardLow LossStandardLow Loss
    Insertion LossTypical0.50dB0.20dB0.50dB0.20dB
    Maximum0.70dB0.35dB0.70dB0.35dB
    Return Loss≥60dB for APC≥20dB for PC
    ≥40dB for PC--
    Male/FemaleMale: with Pins, Female: without Pins

    3. Geometry Parameters


    MeasurementPass/Fail Limits
    ParametersMinMax
    Radius of CurvatureLong Axel2000nm

    Short Axel50mm

    AngleLong Axel-0.2°0.2°
    Short AxelAPC7.8°8.2°
    PC-0.2°0.2°
    Fiber Height1000nm3000nm
    Different Fiber HeightN/A500nm
    Adjacent Fiber HeightN/A300nm
    Ferrule Length7.9mmN/A


    Standard Package



    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    ORC QC Process Flow Chat
    FAQ
    1. Q: What's the difference between MTP and MPO connector?
    A: First of all, MTP connector is fully compliant with all of the MPO connector. MTP, developed and manufactured by the American connectivity specialist US Conec, is a kind of high performance MPO connector with multiple innovative design. So its cost is higher than MPO connector. But there are still some cost-effective choices, such as Senko, Nissin, EZconn, FIEL brand MPO connectors.
    2. Q: What's your average lead time?
    A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
    3. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
