    B Type Polarity MPO Patch Cable Multi Mode LSZH Material 3m Length Aqua Color

    Ask Lasest Price
    Brand Name : OEM
    Model Number : MPO-MPO-24F-F-3.0-B-30M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 3000 connectors/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

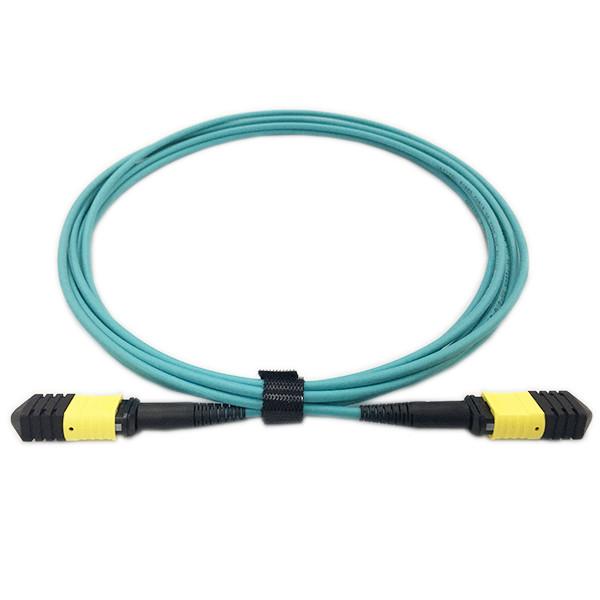

    B Type Polarity MPO Patch Cable Multi Mode LSZH Material 3m Length Aqua Color

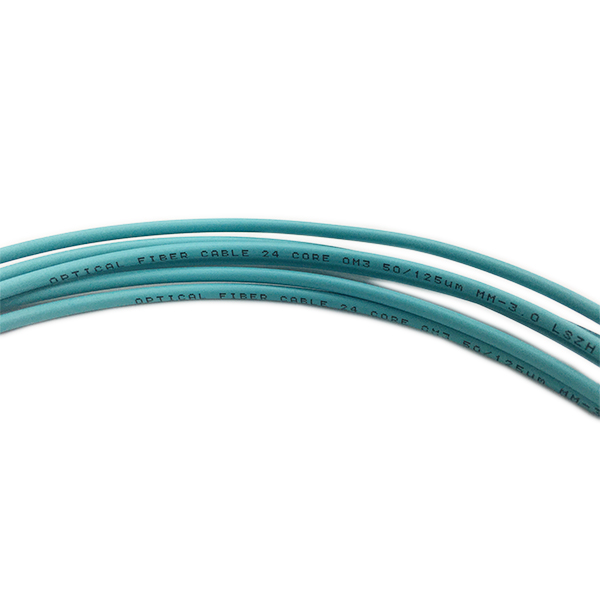

    24F OM3 10G - 300 CORNING FIBER MPO PATCH CORD LSZH MATERIAL 3M LENGTH AQUA
    Sometimes there is a misunderstanding that more optical fibers means more insertion loss. This misunderstanding lying on MPO patch cord is that the insertion loss of the 24F MPO patch cord is larger than that of the 12F MPO patch cord. Actually the insertion loss of both fiber counts connector is almost no difference if the ferrule is polished properly.
    24F MPO connector ferrule has 2X12F fiber array. 1X12F is used for the transmission of optic and another 12F is used for the receiving. The middle 10F of each array are filled with optical fibers and the rest 2F are blank. This kind of fiber arrangement is determined by the 100G transceiver.
    Features

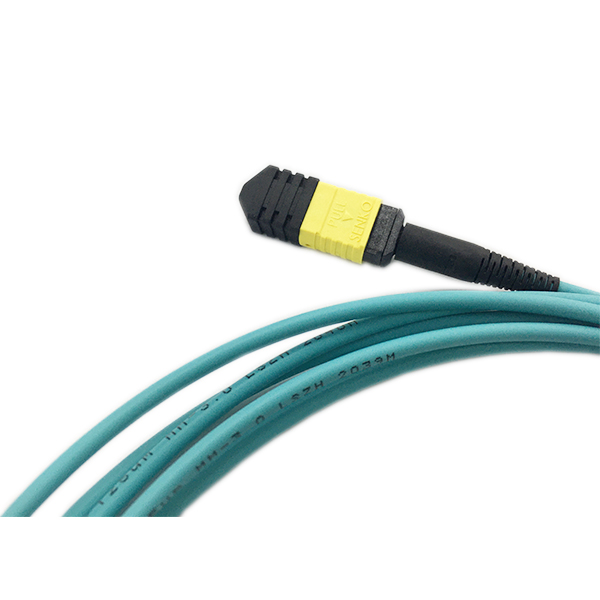

    ◆ Original SENKO connector
    ◆ Compliance with IEC61754-7 and TIA 604-5-MPO
    ◆ 100% 3D geometry test with professional interferometer
    High reliability, adaptability and flexibility
    ◆ Round shape mini fiber optical cable, which has a small bend radius and is convenient for installation
    Application
    ◆ FTTB high density cabling system
    ◆ LANs and WANs
    ◆ Complete connect 40G(QSFP+) optical transceiver
    ◆ Datacom and Telecom
    ◆ Fiber optical communication system
    Specification

    1. Operating & Storage Temperature


    ParametersMinMaxUnit
    1Operating Temperature-4070°C
    2Storage Temperature-4070°C

    2. Optical Performance


    Optical Performance
    ItemParameters
    MTP/MPO ConnectorSM (1310nm/1550nm)MM (850nm)
    StandardLow LossStandardLow Loss
    Insertion LossTypical0.50dB0.20dB0.50dB0.20dB
    Maximum0.70dB0.35dB0.70dB0.35dB
    Return Loss≥60dB for APC≥20dB for PC
    ≥40dB for PC--
    Male/FemaleMale: with Pins, Female: without Pins

    3. Geometry Parameters


    MeasurementPass/Fail Limits
    ParametersMinMax
    Radius of CurvatureLong Axel2000nm

    Short Axel50mm

    AngleLong Axel-0.2°0.2°
    Short AxelAPC7.8°8.2°
    PC-0.2°0.2°
    Fiber Height1000nm3000nm
    Different Fiber HeightN/A500nm
    Adjacent Fiber HeightN/A300nm
    Ferrule Length7.9mmN/A


    Standard Package



    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    ORC QC Process Flow Chat
    FAQ
    1. Q: What's the difference between MTP and MPO connector?
    A: First of all, MTP connector is fully compliant with all of the MPO connector. MTP, developed and manufactured by the American connectivity specialist US Conec, is a kind of high performance MPO connector with multiple innovative design. So its cost is higher than MPO connector. But there are still some cost-effective choices, such as Senko, Nissin, EZconn, FIEL brand MPO connectors.
    2. Q: What's your average lead time?
    A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
    3. Q: Can you produce according to the samples we send you?
    A: Of course, we can produce according to your samples or technical drawings.
