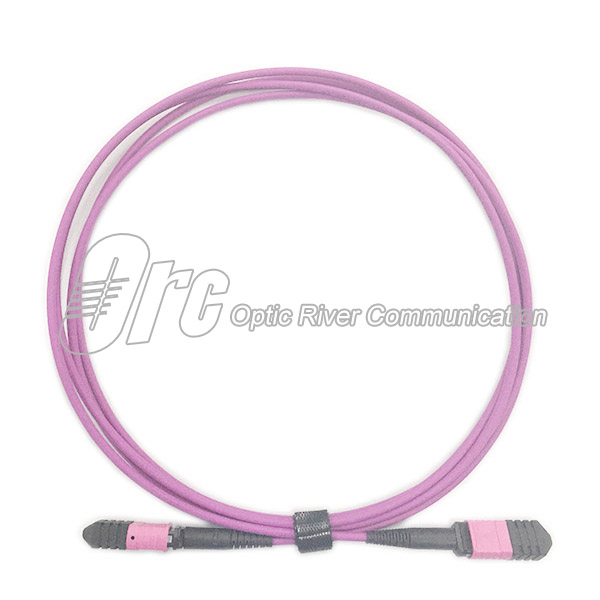

    40G 100G OM4 MPO TO MPO Optical Jumper Patch Cord 12 Core

    Ask Lasest Price
    Brand Name : OEM
    Model Number : MPO-MPO-12F-F-3.0-OM4-B-1M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 3000 connectors/day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    40G 100G OM4 MPO TO MPO Optical Jumper Patch Cord 12 Core

    40G 100G 12 CORES OM4 MPO TO MPO MULTI-MODE FIBER OPTIC JUMPER PATCH CORD
    ORC's factory pre-connectorized Multimode 50/125 OM4 MPO trunk cable offers the users the much faster installation, the advantage of consistent quality and simpler cable management. Manufactured with 12-strand SENKO MPO female connectors and 12 cores laser-optimized multimode OM4 fiber optic cables, the MPO fiber optic trunk cable is suitable for application in MPO fiber optic cassette connection and 10G/40G/100G high density data center cabling.
    Features
    Fiber count: 12 fiber trunk cable
    Laser-optimized multimode OM4 fiber
    Optimized performance – available in elite MTP and discrete premium connector upon request
    Factory terminated and tested
    Suitable for MPO cassette application
    Application

    High density fiber card edge access
    Array trunk cables
    ◆ 40G and 100G optics system, QSFP module
    Optical switching interframe connections
    ◆ Data center cabling installation
    Specification

    1. Operating & Storage Temperature


    ParametersMinMaxUnit
    1Operating Temperature-4070°C
    2Storage Temperature-4070°C

    2. Geometry Parameters


    MeasurementPass/Fail Limits
    ParametersMinMax
    Radius of CurvatureLong Axel2000nm

    Short Axel50mm

    AngleLong Axel-0.2°0.2°
    Short AxelAPC7.8°8.2°
    PC-0.2°0.2°
    Fiber Height1000nm3000nm
    Different Fiber HeightN/A500nm
    Adjacent Fiber HeightN/A300nm
    Ferrule Length7.9mmN/A

    3. Optical Performance


    Optical Performance
    ItemParameters
    MTP/MPO ConnectorSM (1310nm/1550nm)MM (850nm)
    StandardLow LossStandardLow Loss
    Insertion LossTypical0.50dB0.20dB0.50dB0.20dB
    Maximum0.70dB0.35dB0.70dB0.35dB
    Return Loss≥60dB for APC≥20dB for PC
    ≥40dB for PC--
    Male/FemaleMale: with Pins, Female: without Pins


    Standard Package



    Product Advantages


    We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
    We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
    Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
    Our service is qualified. We insist on responsive and knowledgeable service to each customer.
    Choose Your Polarity
    ORC QC Process Flow Chat
