MPO To LC Male LSZH G657A Fiber Optic Patch Cord 12 Cores

    Buy cheap MPO To LC Male LSZH G657A Fiber Optic Patch Cord 12 Cores from wholesalers

    Buy cheap MPO To LC Male LSZH G657A Fiber Optic Patch Cord 12 Cores from wholesalers
    • Buy cheap MPO To LC Male LSZH G657A Fiber Optic Patch Cord 12 Cores from wholesalers

    MPO To LC Male LSZH G657A Fiber Optic Patch Cord 12 Cores

    Ask Lasest Price
    Brand Name : OEM
    Model Number : MPO/APC-LC/UPC-12F-3.0-2M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000,000 connectors/month
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    MPO To LC Male LSZH G657A Fiber Optic Patch Cord 12 Cores

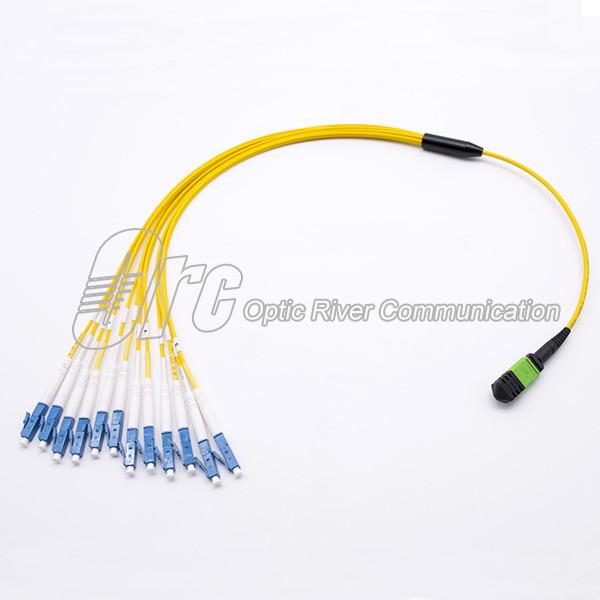

    12 Cores MPO to LC Male Single mode G657A Fan Out Fiber Optic Patch cord
    Technical parameter
    ParameterUnitSM StandardSM Low lossMM StandardMM Low loss

    Insertion

    Loss

    TypicaldB0.350.200.350.20
    Max0.750.350.650.35

    Return Loss


    dB

    APC≥50

    /


    ≥25


    ≥35

    PC≥40
    RepeatabilitydB≤0.1
    InterchangeabilitydB≤0.3(Connector Randomly)
    DurabilitydB≤0.3(change500matings)≤0.3(change1000 matings)
    VibrationdB≤0.3(10~55Hz)
    Operating Temperature-25~+70
    Applications

    MPO/MTP is the high density of optical fiber pre-connect system which is generally use in three areas.

    · The data center application with high density environment.
    · The optical fiber to the building.
    · The internal connector application in fiber equipment such as Splitter.

    · 40G / 100G SFP and SFP.


    Fiber cable performance
    Fiber TypeOS2, OM1, OM2, OM3, OM4 OM5
    Fiber Count12, 24, 48, 72, 96, 144 cores
    Fiber Attenuation dB (OS2)≤0.38 Max ≤0.34Typ(1310nm) ≤0.25 Max ≤0.19Typ(1550nm)
    Fiber Attenuation dB (OM1)≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤1.2Typ(1300nm)
    Fiber Attenuation dB (OM2)≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
    Fiber Attenuation dB (OM3)≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
    Fiber Attenuation dB (OM4)≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
    Min.Bandwidth:Overfilled Launch[Mhz-km]OM1200(850nm) 500(1300nm) OM2500(850nm) 500(1300nm) OM31500(850nm)500(1300nm)OM43500(850nm) 500(1300nm)
    Min.Bandwidth:Laser Effective Modal Bandwidth [Mhz-km]
    OM3 2000(850nm) OM4 4700(850nm)
    Outer diameter12fiber: 3.0 or 5.5mm; 24fiber: 3.0 or 5.5mm
    Outer jacket ColourOS2(Yellow), OM2(Orange), OM3(Aqua), OM4(Purple or Aqua)
    Outer jacket materialLSZH,OFNP,OFNR
    Tensile strength>500N
    Operating Temperature-40 ~ +85°C

    Features

    High Performance in IL & RL

    4,8,12 and 24 fiber connector terminations and assemblies

    Designed for low loss and standard loss SM and MM applications

    Economical solution for mass-termination of fiber

    Suitable for MPO/MTP application

    Ruggedized round cable, oval cable and bare ribbon options available

    Color coded housings available to differentiate fiber type, polish type and/or connector grade


    Our services


    1. Advanced production and testing equipment.
    2. Professional manufacturer, 100% tested.
    3. Full compliance with ISO 9001: 2015 quality management system.
    4. Our company has experienced professional team.
    5. Provide reliable solutions and satisfactory services.
    6. Warmly services with careful attentions.
